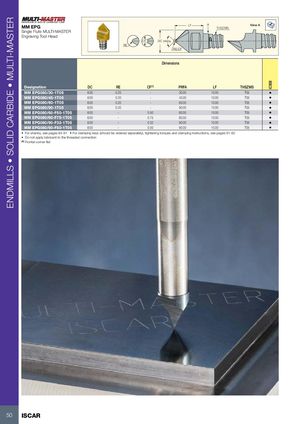

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908 MM EPG LF A View ATHSZMS Single Flute MULTI-MASTER Engraving Tool Head CF DC PRFA RE RE/CF Dimensions Designation DC RE CF(1) PRFA LF THSZMS MM EPG080/30-1T05 8.00 0.20 - 30.00 10.00 T05 • MM EPG080/45-1T05 8.00 0.20 - 45.00 10.00 T05 • MM EPG080/60-1T05 8.00 0.20 - 60.00 10.00 T05 • MM EPG080/90-1T05 8.00 0.20 - 90.00 10.00 T05 • MM EPG080/60-F50-1T05 8.00 - 0.50 60.00 10.00 T05 • MM EPG080/60-F75-1T05 8.00 - 0.75 60.00 10.00 T05 • MM EPG080/90-F32-1T05 8.00 - 0.32 90.00 10.00 T05 • MM EPG080/90-F50-1T05 8.00 - 0.50 90.00 10.00 T05 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection (1) Frontal corner flat 50 ISCAR
