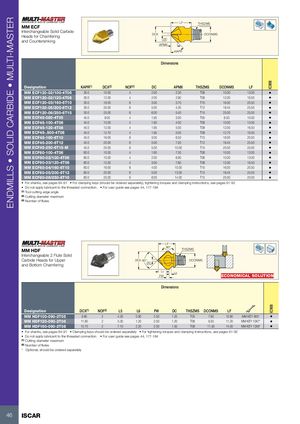

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908IC908 LF THSZMS MM ECF Interchangeable Solid Carbide Heads for Chamfering DCX DCONMS and Countersinking DC APMX KAPR Dimensions Designation KAPR(1) DCX(2) NOF(3) DC APMX THSZMS DCONMS LF MM ECF120-02/100-4T06 30.0 10.00 4 2.00 2.30 T06 10.00 13.00 • MM ECF120-02/120-4T08 30.0 12.00 4 2.00 2.90 T08 12.00 16.50 • MM ECF120-03/160-6T10 30.0 16.00 6 3.00 3.70 T10 16.00 20.50 • MM ECF120-05/200-6T12 30.0 20.00 6 5.00 4.30 T12 18.45 25.50 • MM ECF120-06/250-6T15 30.0 25.00 6 6.00 5.40 T15 25.00 25.00 • MM ECF45-080-4T05 45.0 8.00 4 1.95 3.00 T05 8.00 10.00 • MM ECF45-100-4T06 45.0 10.00 4 1.95 4.00 T06 10.00 13.00 • MM ECF45-120-4T08 45.0 12.00 4 1.95 5.00 T08 12.00 16.50 • MM ECF45-.500-4T08 45.0 12.70 4 1.95 5.00 T08 12.70 16.50 • MM ECF45-160-6T10 45.0 16.00 6 3.00 6.50 T10 16.00 20.50 • MM ECF45-200-6T12 45.0 20.00 6 5.00 7.50 T12 18.45 25.50 • MM ECF45-250-6T15-M 45.0 25.00 6 5.00 10.00 T15 25.00 25.00 • MM ECF60-100-4T06 60.0 10.00 4 1.60 7.30 T06 10.00 13.00 • MM ECF60-02/100-4T06 60.0 10.00 4 2.00 6.90 T06 10.00 13.00 • MM ECF60-03/120-4T08 60.0 12.00 4 3.00 7.80 T08 12.00 16.50 • MM ECF60-04/160-6T10 60.0 16.00 6 4.00 10.00 T10 16.00 20.50 • MM ECF60-05/200-6T12 60.0 20.00 6 5.00 13.00 T12 18.45 25.50 • MM ECF60-08/250-6T15 60.0 25.00 6 8.00 14.00 T15 25.00 25.00 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Tool cutting edge angle (2) Cutting diameter maximum (3) Number of flutes LF 90° MM HDF THSZMS Interchangeable 2 Flute Solid Carbide Heads for Upper DCX 90° DCONMS and Bottom Chamfering DC L5 L6 FW ECONOMICAL SOLUTION Dimensions Designation DCX(1) NOF(2) L5 L6 FW DC THSZMS DCONMS LF MM HDF100-090-2T05 9.80 2 4.30 0.90 2.50 1.20 T05 7.60 10.80 MM KEY 8X5* • MM HDF120-090-2T06 11.80 2 5.30 1.20 2.00 1.20 T06 9.30 11.20 MM KEY 10X7* • MM HDF160-090-2T08 15.70 2 7.10 2.20 2.00 1.50 T08 11.50 14.00 MM KEY 13X8* • • For shanks, see pages 84-91 • Clamping keys should be ordered separately • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Number of flutes * Optional, should be ordered separately 46 ISCAR
