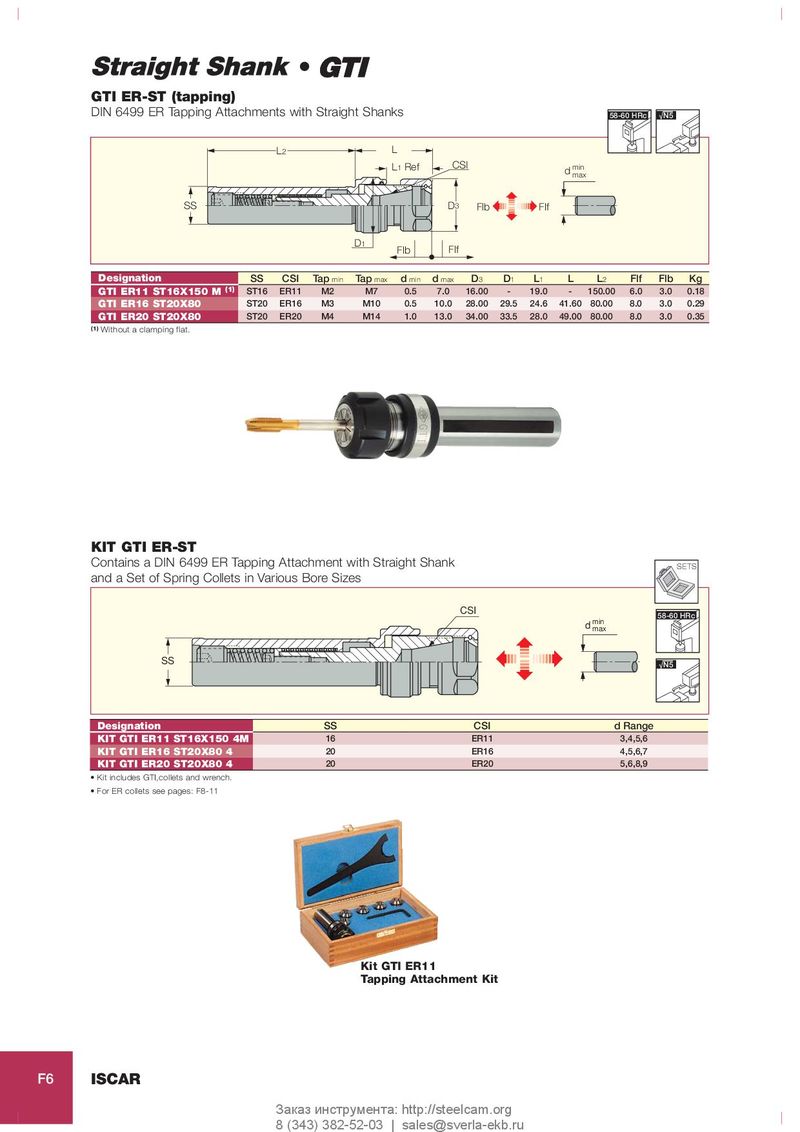

 O  GTI ER-ST (tapping) DIN 6499 ER Tapping Attachments with Straight Shanks 58-60 HRc √N5 L 2 L L 1 Ref CSI min d max SS D 3 Flb Flf D 1 Flb Flf Designation SS CSI Tap min Tap max d min d max D 3 D 1 L 1 L L 2 Flf Flb Kg GTI ER11 ST16X150 M (1) ST16 ER11 M2 M7 0.5 7.0 16.00 - 19.0 - 150.00 6.0 3.0 0.18 GTI ER16 ST20X80 ST20 ER16 M3 M10 0.5 10.0 28.00 29.5 24.6 41.60 80.00 8.0 3.0 0.29 GTI ER20 ST20X80 ST20 ER20 M4 M14 1.0 13.0 34.00 33.5 28.0 49.00 80.00 8.0 3.0 0.35 (1) Without a clamping flat. KIT GTI ER-ST Contains a DIN 6499 ER Tapping Attachment with Straight Shank :,;: and a Set of Spring Collets in Various Bore Sizes CSI 58-60 HRc min d max SS √N5 Designation SS CSI d Range KIT GTI ER11 ST16X150 4M 16 ER11 3,4,5,6 KIT GTI ER16 ST20X80 4 20 ER16 4,5,6,7 KIT GTI ER20 ST20X80 4 20 ER20 5,6,8,9 • Kit includes GTI,collets and wrench. • For ER collets see pages: F8-11 Kit GTI ER11 Tapping Attachment Kit F6 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
