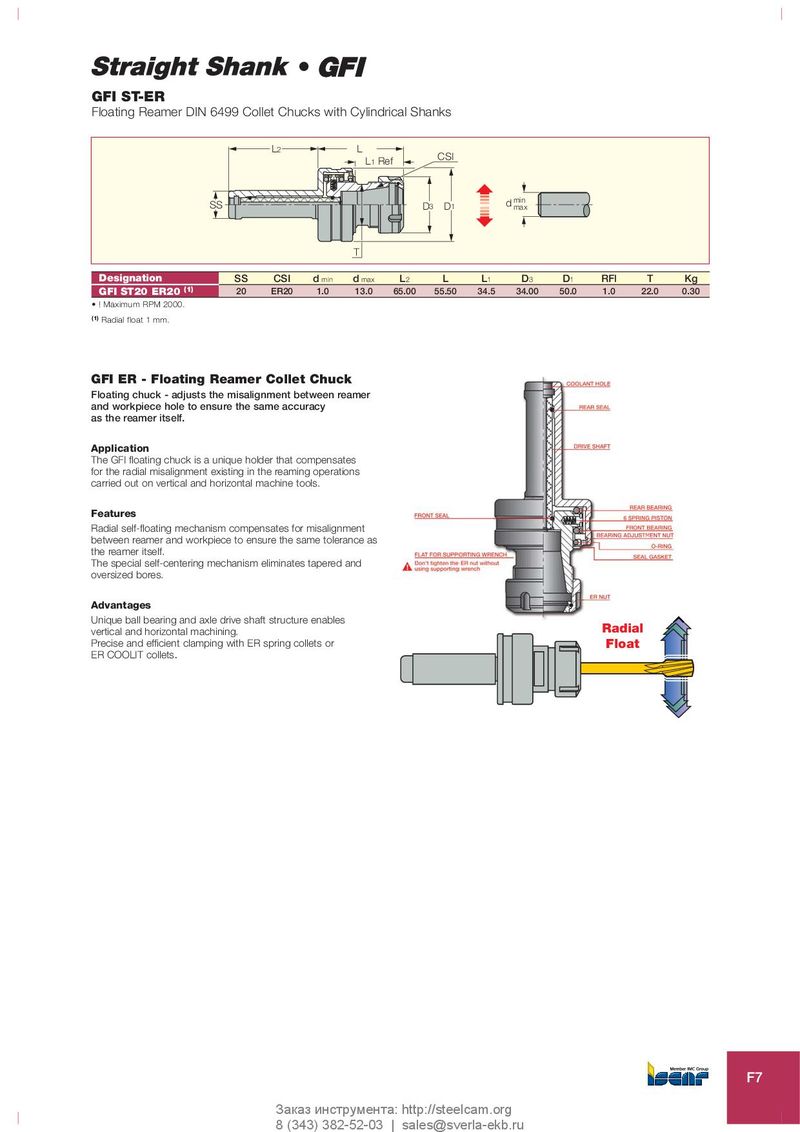

 O  GFI ST-ER Floating Reamer DIN 6499 Collet Chucks with Cylindrical Shanks L 2 L CSI L 1 Ref SS D 3 D 1 d min max T Designation SS CSI d min d max L 2 L L 1 D 3 D 1 RFl T Kg GFI ST20 ER20 (1) 20 ER20 1.0 13.0 65.00 55.50 34.5 34.00 50.0 1.0 22.0 0.30 • ! Maximum RPM 2000. (1) Radial float 1 mm. GFI ER - Floating Reamer Collet Chuck Floating chuck - adjusts the misalignment between reamer and workpiece hole to ensure the same accuracy as the reamer itself. Application The GFI floating chuck is a unique holder that compensates for the radial misalignment existing in the reaming operations carried out on vertical and horizontal machine tools. Features Radial self-floating mechanism compensates for misalignment between reamer and workpiece to ensure the same tolerance as the reamer itself. The special self-centering mechanism eliminates tapered and oversized bores. Advantages Unique ball bearing and axle drive shaft structure enables vertical and horizontal machining. Radial Precise and efficient clamping with ER spring collets or Float ER COOLIT collets. F7 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
