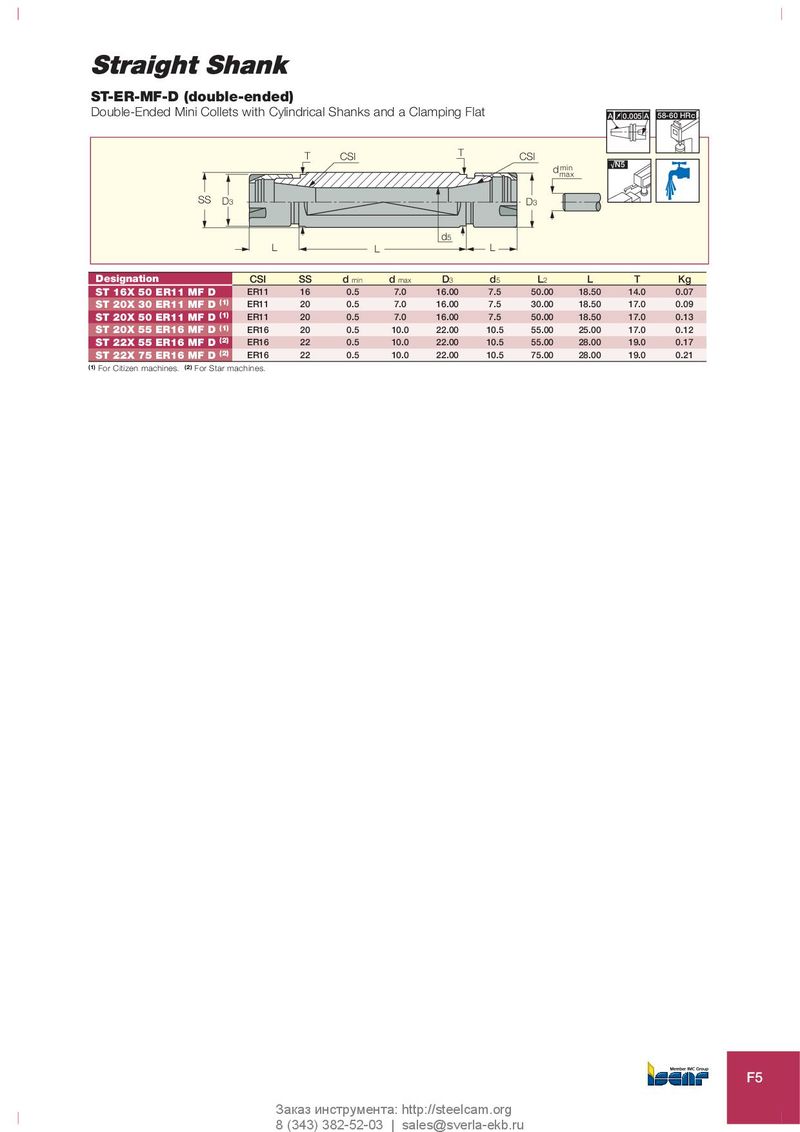

ST-ER-MF-D (double-ended) Double-Ended Mini Collets with Cylindrical Shanks and a Clamping Flat A 0.005 A 58-60 HRc T CSI T CSI √N5 d min max SS D 3 D 3 d 5 L L L Designation CSI SS d min d max D 3 d 5 L 2 L T Kg ST 16X 50 ER11 MF D ER11 16 0.5 7.0 16.00 7.5 50.00 18.50 14.0 0.07 ST 20X 30 ER11 MF D (1) ER11 20 0.5 7.0 16.00 7.5 30.00 18.50 17.0 0.09 ST 20X 50 ER11 MF D (1) ER11 20 0.5 7.0 16.00 7.5 50.00 18.50 17.0 0.13 ST 20X 55 ER16 MF D (1) ER16 20 0.5 10.0 22.00 10.5 55.00 25.00 17.0 0.12 ST 22X 55 ER16 MF D (2) ER16 22 0.5 10.0 22.00 10.5 55.00 28.00 19.0 0.17 ST 22X 75 ER16 MF D (2) ER16 22 0.5 10.0 22.00 10.5 75.00 28.00 19.0 0.21 (1) For Citizen machines. (2) For Star machines. F5 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
