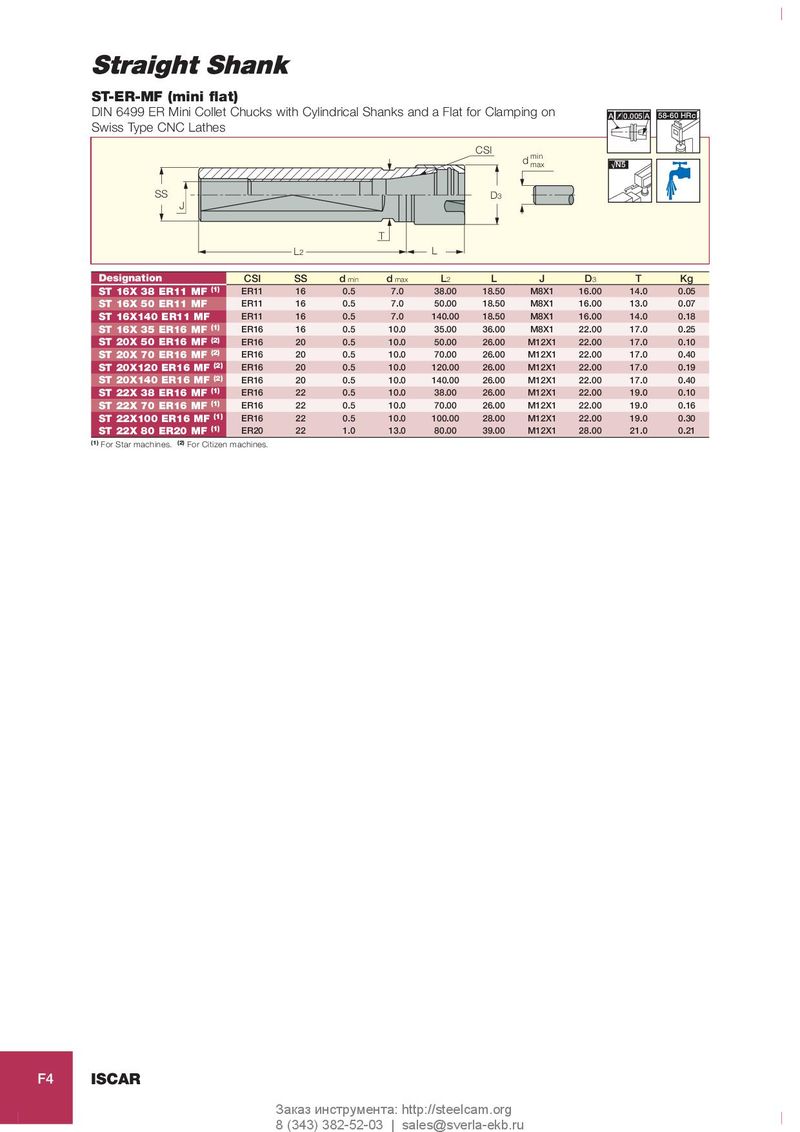

ST-ER-MF (mini flat) DIN 6499 ER Mini Collet Chucks with Cylindrical Shanks and a Flat for Clamping on A 0.005 A 58-60 HRc Swiss Type CNC Lathes CSI min d max √N5 SS D 3 J T L 2 L Designation CSI SS d min d max L 2 L J D 3 T Kg ST 16X 38 ER11 MF (1) ER11 16 0.5 7.0 38.00 18.50 M8X1 16.00 14.0 0.05 ST 16X 50 ER11 MF ER11 16 0.5 7.0 50.00 18.50 M8X1 16.00 13.0 0.07 ST 16X140 ER11 MF ER11 16 0.5 7.0 140.00 18.50 M8X1 16.00 14.0 0.18 ST 16X 35 ER16 MF (1) ER16 16 0.5 10.0 35.00 36.00 M8X1 22.00 17.0 0.25 ST 20X 50 ER16 MF (2) ER16 20 0.5 10.0 50.00 26.00 M12X1 22.00 17.0 0.10 ST 20X 70 ER16 MF (2) ER16 20 0.5 10.0 70.00 26.00 M12X1 22.00 17.0 0.40 ST 20X120 ER16 MF (2) ER16 20 0.5 10.0 120.00 26.00 M12X1 22.00 17.0 0.19 ST 20X140 ER16 MF (2) ER16 20 0.5 10.0 140.00 26.00 M12X1 22.00 17.0 0.40 ST 22X 38 ER16 MF (1) ER16 22 0.5 10.0 38.00 26.00 M12X1 22.00 19.0 0.10 ST 22X 70 ER16 MF (1) ER16 22 0.5 10.0 70.00 26.00 M12X1 22.00 19.0 0.16 ST 22X100 ER16 MF (1) ER16 22 0.5 10.0 100.00 28.00 M12X1 22.00 19.0 0.30 ST 22X 80 ER20 MF (1) ER20 22 1.0 13.0 80.00 39.00 M12X1 28.00 21.0 0.21 (1) For Star machines. (2) For Citizen machines. F4 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
