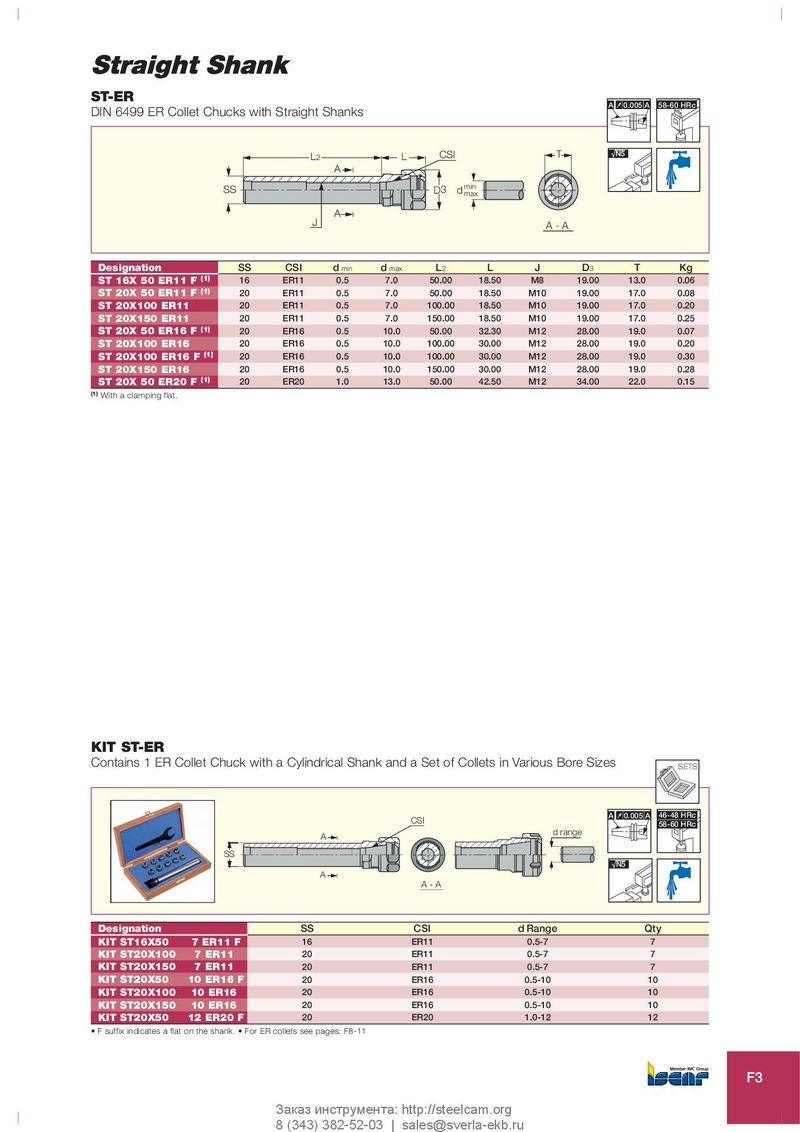

ST-ER A 0.005 A 58-60 HRc DIN 6499 ER Collet Chucks with Straight Shanks L 2 L CSI T √N5 A min SS D 3 d max A J A - A Designation SS CSI d min d max L 2 L J D 3 T Kg ST 16X 50 ER11 F (1) 16 ER11 0.5 7.0 50.00 18.50 M8 19.00 13.0 0.06 ST 20X 50 ER11 F (1) 20 ER11 0.5 7.0 50.00 18.50 M10 19.00 17.0 0.08 ST 20X100 ER11 20 ER11 0.5 7.0 100.00 18.50 M10 19.00 17.0 0.20 ST 20X150 ER11 20 ER11 0.5 7.0 150.00 18.50 M10 19.00 17.0 0.25 ST 20X 50 ER16 F (1) 20 ER16 0.5 10.0 50.00 32.30 M12 28.00 19.0 0.07 ST 20X100 ER16 20 ER16 0.5 10.0 100.00 30.00 M12 28.00 19.0 0.20 ST 20X100 ER16 F (1) 20 ER16 0.5 10.0 100.00 30.00 M12 28.00 19.0 0.30 ST 20X150 ER16 20 ER16 0.5 10.0 150.00 30.00 M12 28.00 19.0 0.28 ST 20X 50 ER20 F (1) 20 ER20 1.0 13.0 50.00 42.50 M12 34.00 22.0 0.15 (1) With a clamping flat. KIT ST-ER Contains 1 ER Collet Chuck with a Cylindrical Shank and a Set of Collets in Various Bore Sizes :,;: A 0.005 A 46-48 HRc CSI 58-60 HRc d range A SS SS √N5 A A - A Designation SS CSI d Range Qty KIT ST16X50 7 ER11 F 16 ER11 0.5-7 7 KIT ST20X100 7 ER11 20 ER11 0.5-7 7 KIT ST20X150 7 ER11 20 ER11 0.5-7 7 KIT ST20X50 10 ER16 F 20 ER16 0.5-10 10 KIT ST20X100 10 ER16 20 ER16 0.5-10 10 KIT ST20X150 10 ER16 20 ER16 0.5-10 10 KIT ST20X50 12 ER20 F 20 ER20 1.0-12 12 • F suffix indicates a flat on the shank. • For ER collets see pages: F8-11 F3 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
