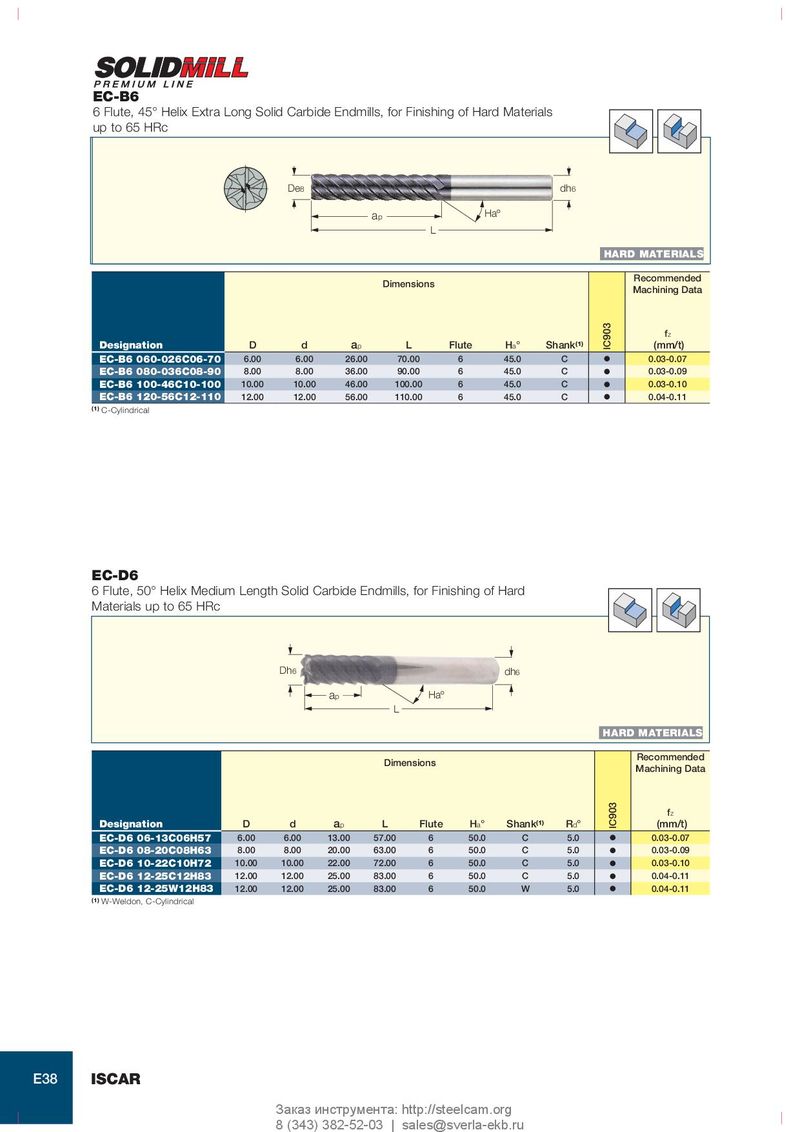

EC-B6 6 Flute, 45° Helix Extra Long Solid Carbide Endmills, for Finishing of Hard Materials up to 65 HRc De8 dh6 ap Haº L HARD MATERIALS Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° Shank (1) IC903 (mm/t) EC-B6 060-026C06-70 6.00 6.00 26.00 70.00 6 45.0 C O 0.03-0.07 EC-B6 080-036C08-90 8.00 8.00 36.00 90.00 6 45.0 C O 0.03-0.09 EC-B6 100-46C10-100 10.00 10.00 46.00 100.00 6 45.0 C O 0.03-0.10 EC-B6 120-56C12-110 12.00 12.00 56.00 110.00 6 45.0 C O 0.04-0.11 (1) C-Cylindrical EC-D6 6 Flute, 50° Helix Medium Length Solid Carbide Endmills, for Finishing of Hard Materials up to 65 HRc Dh6 dh6 ap Haº L HARD MATERIALS Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° Shank (1) R d ° IC903 (mm/t) EC-D6 06-13C06H57 6.00 6.00 13.00 57.00 6 50.0 C 5.0 O 0.03-0.07 EC-D6 08-20C08H63 8.00 8.00 20.00 63.00 6 50.0 C 5.0 O 0.03-0.09 EC-D6 10-22C10H72 10.00 10.00 22.00 72.00 6 50.0 C 5.0 O 0.03-0.10 EC-D6 12-25C12H83 12.00 12.00 25.00 83.00 6 50.0 C 5.0 O 0.04-0.11 EC-D6 12-25W12H83 12.00 12.00 25.00 83.00 6 50.0 W 5.0 O 0.04-0.11 (1) W-Weldon, C-Cylindrical E38 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
