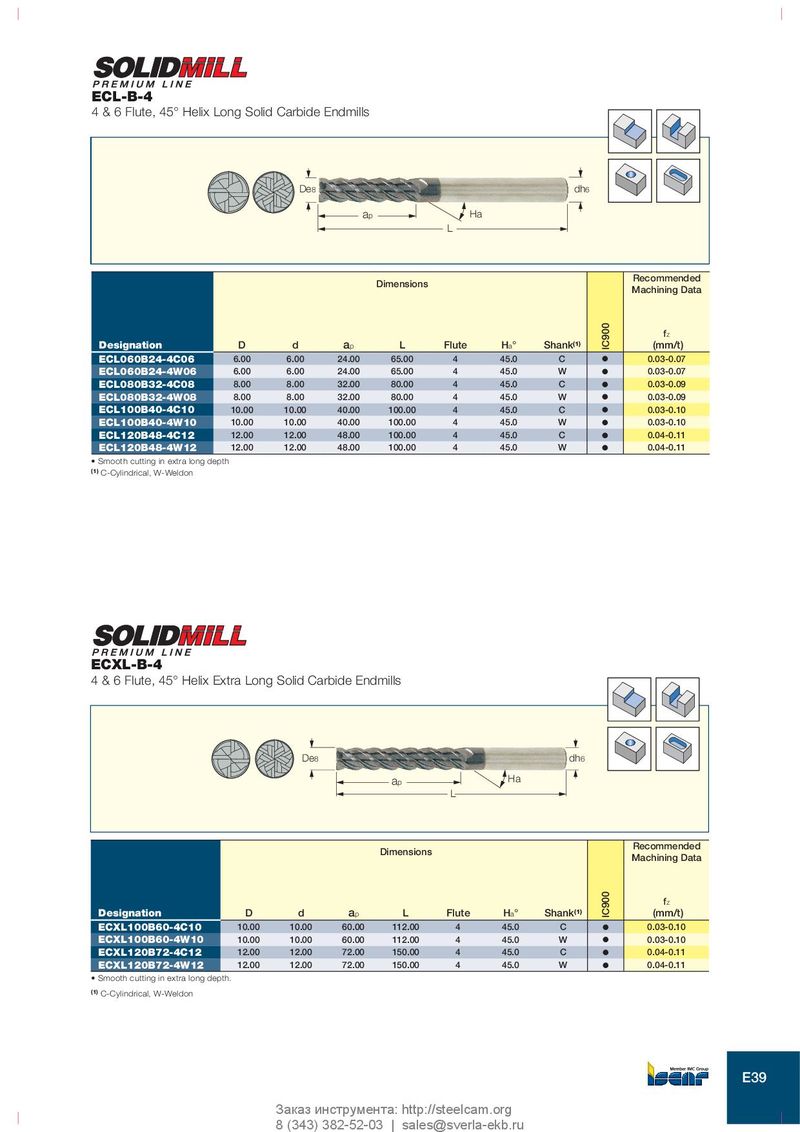

ECL-B-4 4 & 6 Flute, 45° Helix Long Solid Carbide Endmills De8 dh6 ap Ha L Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° Shank (1) IC900 (mm/t) ECL060B24-4C06 6.00 6.00 24.00 65.00 4 45.0 C O 0.03-0.07 ECL060B24-4W06 6.00 6.00 24.00 65.00 4 45.0 W O 0.03-0.07 ECL080B32-4C08 8.00 8.00 32.00 80.00 4 45.0 C O 0.03-0.09 ECL080B32-4W08 8.00 8.00 32.00 80.00 4 45.0 W O 0.03-0.09 ECL100B40-4C10 10.00 10.00 40.00 100.00 4 45.0 C O 0.03-0.10 ECL100B40-4W10 10.00 10.00 40.00 100.00 4 45.0 W O 0.03-0.10 ECL120B48-4C12 12.00 12.00 48.00 100.00 4 45.0 C O 0.04-0.11 ECL120B48-4W12 12.00 12.00 48.00 100.00 4 45.0 W O 0.04-0.11 • Smooth cutting in extra long depth (1) C-Cylindrical, W-Weldon ECXL-B-4 4 & 6 Flute, 45° Helix Extra Long Solid Carbide Endmills De8 dh6 ap Ha L Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° Shank (1) IC900 (mm/t) ECXL100B60-4C10 10.00 10.00 60.00 112.00 4 45.0 C O 0.03-0.10 ECXL100B60-4W10 10.00 10.00 60.00 112.00 4 45.0 W O 0.03-0.10 ECXL120B72-4C12 12.00 12.00 72.00 150.00 4 45.0 C O 0.04-0.11 ECXL120B72-4W12 12.00 12.00 72.00 150.00 4 45.0 W O 0.04-0.11 • Smooth cutting in extra long depth. (1) C-Cylindrical, W-Weldon E39 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
