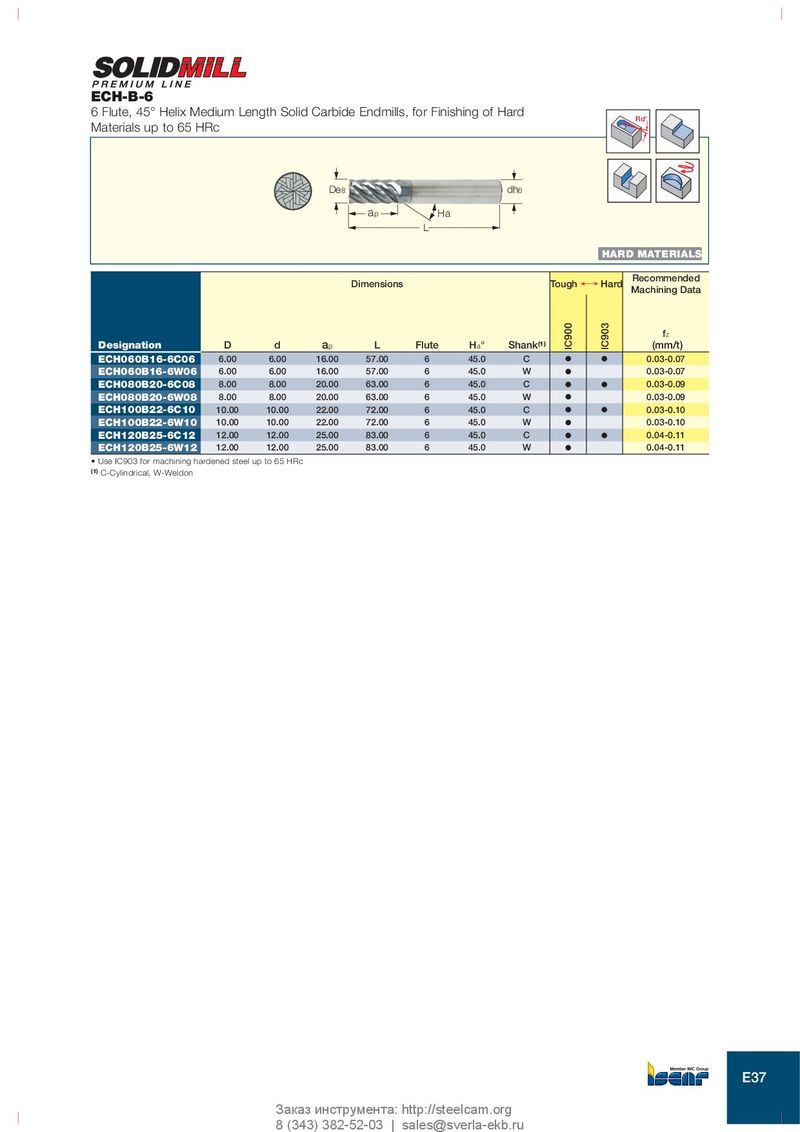

ECH-B-6 6 Flute, 45° Helix Medium Length Solid Carbide Endmills, for Finishing of Hard Rd° Materials up to 65 HRc De8 dh6 ap Ha L HARD MATERIALS Recommended Dimensions Tough ¥ Hard Machining Data f z Designation D d a p L Flute H a ° Shank (1) IC900 IC903 (mm/t) ECH060B16-6C06 6.00 6.00 16.00 57.00 6 45.0 C O O 0.03-0.07 ECH060B16-6W06 6.00 6.00 16.00 57.00 6 45.0 W O 0.03-0.07 ECH080B20-6C08 8.00 8.00 20.00 63.00 6 45.0 C O O 0.03-0.09 ECH080B20-6W08 8.00 8.00 20.00 63.00 6 45.0 W O 0.03-0.09 ECH100B22-6C10 10.00 10.00 22.00 72.00 6 45.0 C O O 0.03-0.10 ECH100B22-6W10 10.00 10.00 22.00 72.00 6 45.0 W O 0.03-0.10 ECH120B25-6C12 12.00 12.00 25.00 83.00 6 45.0 C O O 0.04-0.11 ECH120B25-6W12 12.00 12.00 25.00 83.00 6 45.0 W O 0.04-0.11 • Use IC903 for machining hardened steel up to 65 HRc (1) C-Cylindrical, W-Weldon E37 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
