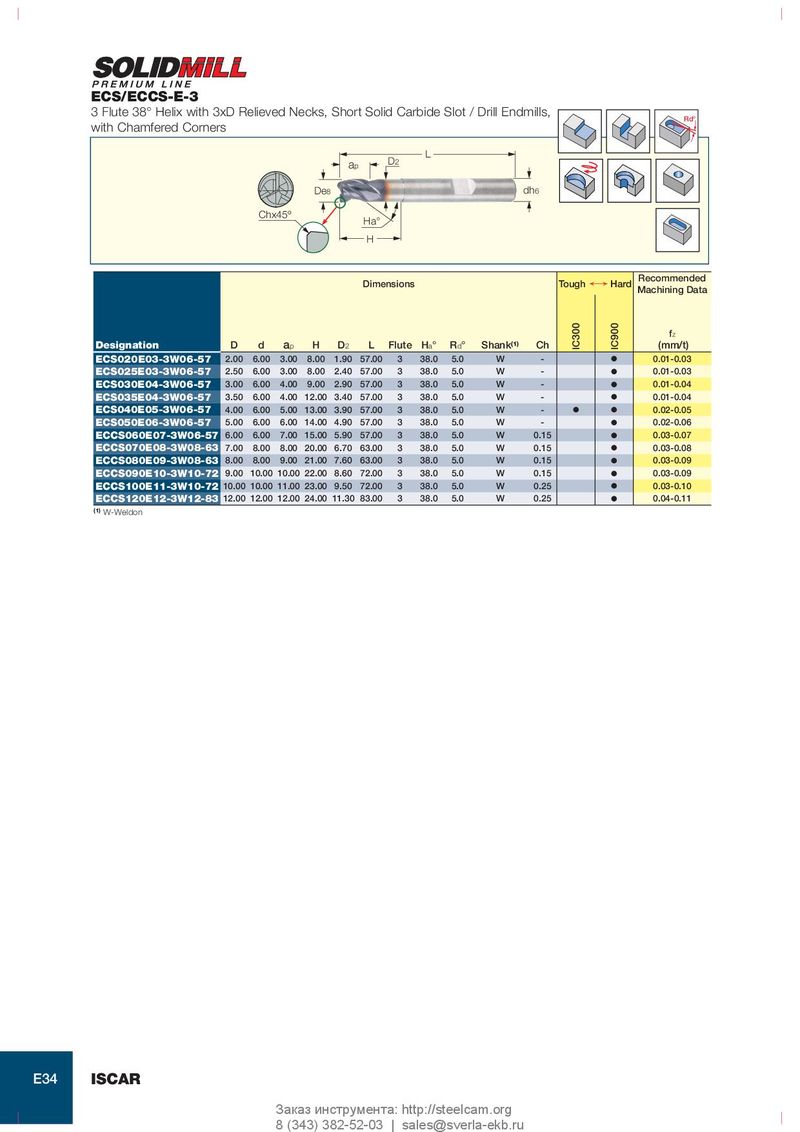

ECS/ECCS-E-3 3 Flute 38° Helix with 3xD Relieved Necks, Short Solid Carbide Slot / Drill Endmills, Rd° with Chamfered Corners L ap D2 De8 dh6 Chx45º Ha° H Recommended Dimensions Tough ¥ Hard Machining Data f z Designation D d a p H D 2 L Flute H a ° R d ° Shank (1) Ch IC300 IC900 (mm/t) ECS020E03-3W06-57 2.00 6.00 3.00 8.00 1.90 57.00 3 38.0 5.0 W - O 0.01-0.03 ECS025E03-3W06-57 2.50 6.00 3.00 8.00 2.40 57.00 3 38.0 5.0 W - O 0.01-0.03 ECS030E04-3W06-57 3.00 6.00 4.00 9.00 2.90 57.00 3 38.0 5.0 W - O 0.01-0.04 ECS035E04-3W06-57 3.50 6.00 4.00 12.00 3.40 57.00 3 38.0 5.0 W - O 0.01-0.04 ECS040E05-3W06-57 4.00 6.00 5.00 13.00 3.90 57.00 3 38.0 5.0 W - O O 0.02-0.05 ECS050E06-3W06-57 5.00 6.00 6.00 14.00 4.90 57.00 3 38.0 5.0 W - O 0.02-0.06 ECCS060E07-3W06-57 6.00 6.00 7.00 15.00 5.90 57.00 3 38.0 5.0 W 0.15 O 0.03-0.07 ECCS070E08-3W08-63 7.00 8.00 8.00 20.00 6.70 63.00 3 38.0 5.0 W 0.15 O 0.03-0.08 ECCS080E09-3W08-63 8.00 8.00 9.00 21.00 7.60 63.00 3 38.0 5.0 W 0.15 O 0.03-0.09 ECCS090E10-3W10-72 9.00 10.00 10.00 22.00 8.60 72.00 3 38.0 5.0 W 0.15 O 0.03-0.09 ECCS100E11-3W10-72 10.00 10.00 11.00 23.00 9.50 72.00 3 38.0 5.0 W 0.25 O 0.03-0.10 ECCS120E12-3W12-83 12.00 12.00 12.00 24.00 11.30 83.00 3 38.0 5.0 W 0.25 O 0.04-0.11 (1) W-Weldon E34 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
