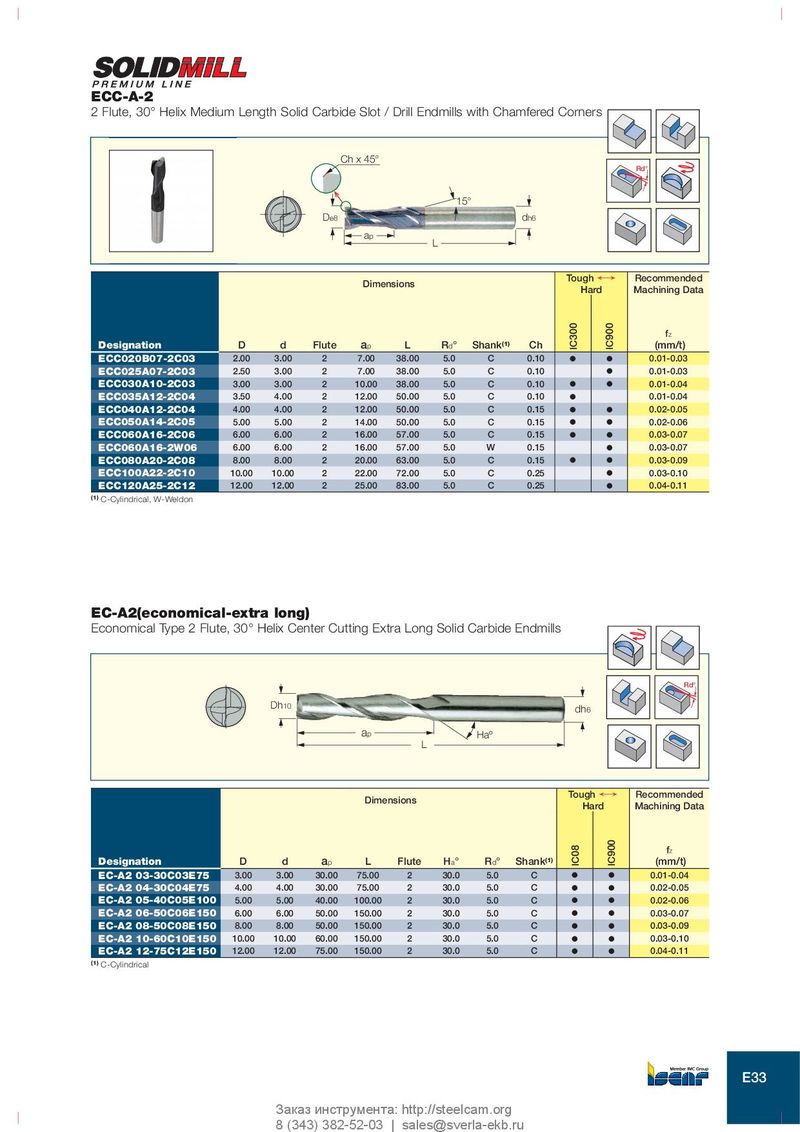

ECC-A-2 2 Flute, 30° Helix Medium Length Solid Carbide Slot / Drill Endmills with Chamfered Corners Ch x 45° Rd° 15° De8 dh6 ap L Tough ¥ Recommended Dimensions Hard Machining Data f z Designation D d Flute a p L R d ° Shank (1) Ch IC300 IC900 (mm/t) ECC020B07-2C03 2.00 3.00 2 7.00 38.00 5.0 C 0.10 O O 0.01-0.03 ECC025A07-2C03 2.50 3.00 2 7.00 38.00 5.0 C 0.10 O 0.01-0.03 ECC030A10-2C03 3.00 3.00 2 10.00 38.00 5.0 C 0.10 O O 0.01-0.04 ECC035A12-2C04 3.50 4.00 2 12.00 50.00 5.0 C 0.10 O 0.01-0.04 ECC040A12-2C04 4.00 4.00 2 12.00 50.00 5.0 C 0.15 O O 0.02-0.05 ECC050A14-2C05 5.00 5.00 2 14.00 50.00 5.0 C 0.15 O O 0.02-0.06 ECC060A16-2C06 6.00 6.00 2 16.00 57.00 5.0 C 0.15 O O 0.03-0.07 ECC060A16-2W06 6.00 6.00 2 16.00 57.00 5.0 W 0.15 O 0.03-0.07 ECC080A20-2C08 8.00 8.00 2 20.00 63.00 5.0 C 0.15 O O 0.03-0.09 ECC100A22-2C10 10.00 10.00 2 22.00 72.00 5.0 C 0.25 O 0.03-0.10 ECC120A25-2C12 12.00 12.00 2 25.00 83.00 5.0 C 0.25 O 0.04-0.11 (1) C-Cylindrical, W-Weldon EC-A2(economical-extra long) Economical Type 2 Flute, 30° Helix Center Cutting Extra Long Solid Carbide Endmills Rd° Dh10 dh6 ap Haº L Tough ¥ Recommended Dimensions Hard Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC900 (mm/t) EC-A2 03-30C03E75 3.00 3.00 30.00 75.00 2 30.0 5.0 C O O 0.01-0.04 EC-A2 04-30C04E75 4.00 4.00 30.00 75.00 2 30.0 5.0 C O O 0.02-0.05 EC-A2 05-40C05E100 5.00 5.00 40.00 100.00 2 30.0 5.0 C O O 0.02-0.06 EC-A2 06-50C06E150 6.00 6.00 50.00 150.00 2 30.0 5.0 C O O 0.03-0.07 EC-A2 08-50C08E150 8.00 8.00 50.00 150.00 2 30.0 5.0 C O O 0.03-0.09 EC-A2 10-60C10E150 10.00 10.00 60.00 150.00 2 30.0 5.0 C O O 0.03-0.10 EC-A2 12-75C12E150 12.00 12.00 75.00 150.00 2 30.0 5.0 C O O 0.04-0.11 (1) C-Cylindrical E33 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
