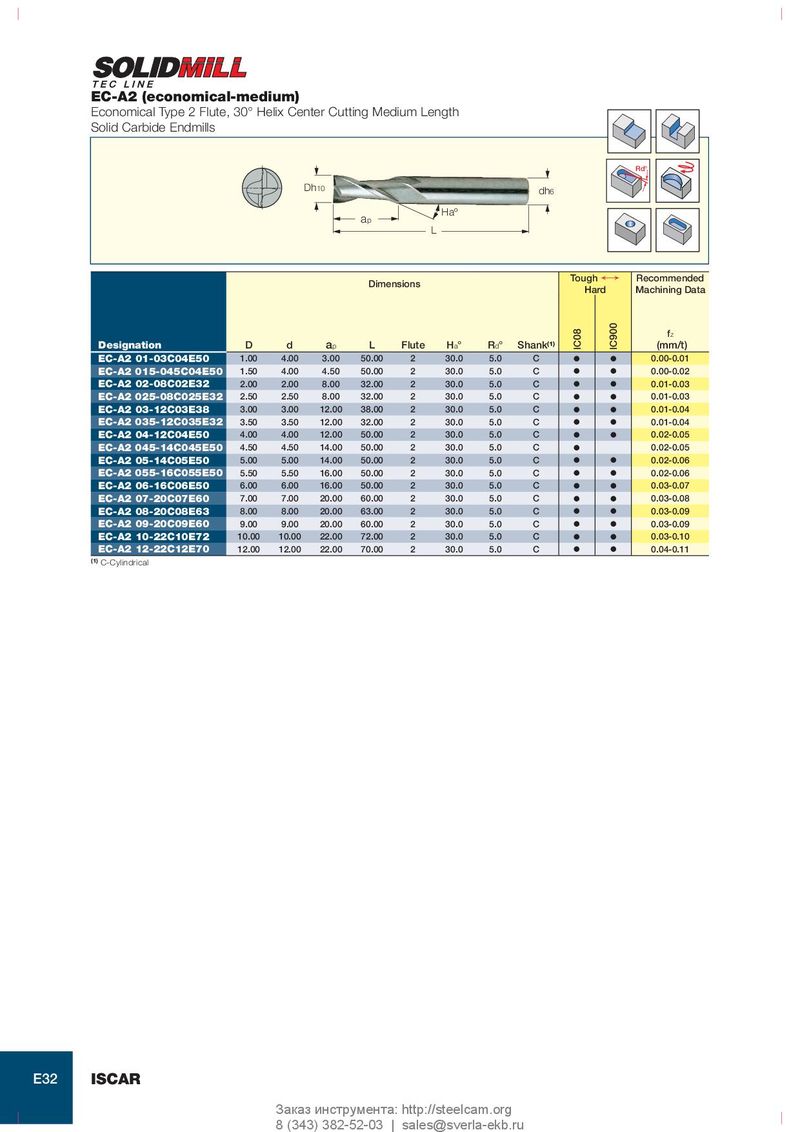

EC-A2 (economical-medium) Economical Type 2 Flute, 30° Helix Center Cutting Medium Length Solid Carbide Endmills Rd° Dh10 dh6 Haº ap L Tough ¥ Recommended Dimensions Hard Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC900 (mm/t) EC-A2 01-03C04E50 1.00 4.00 3.00 50.00 2 30.0 5.0 C O O 0.00-0.01 EC-A2 015-045C04E50 1.50 4.00 4.50 50.00 2 30.0 5.0 C O O 0.00-0.02 EC-A2 02-08C02E32 2.00 2.00 8.00 32.00 2 30.0 5.0 C O O 0.01-0.03 EC-A2 025-08C025E32 2.50 2.50 8.00 32.00 2 30.0 5.0 C O O 0.01-0.03 EC-A2 03-12C03E38 3.00 3.00 12.00 38.00 2 30.0 5.0 C O O 0.01-0.04 EC-A2 035-12C035E32 3.50 3.50 12.00 32.00 2 30.0 5.0 C O O 0.01-0.04 EC-A2 04-12C04E50 4.00 4.00 12.00 50.00 2 30.0 5.0 C O O 0.02-0.05 EC-A2 045-14C045E50 4.50 4.50 14.00 50.00 2 30.0 5.0 C O 0.02-0.05 EC-A2 05-14C05E50 5.00 5.00 14.00 50.00 2 30.0 5.0 C O O 0.02-0.06 EC-A2 055-16C055E50 5.50 5.50 16.00 50.00 2 30.0 5.0 C O O 0.02-0.06 EC-A2 06-16C06E50 6.00 6.00 16.00 50.00 2 30.0 5.0 C O O 0.03-0.07 EC-A2 07-20C07E60 7.00 7.00 20.00 60.00 2 30.0 5.0 C O O 0.03-0.08 EC-A2 08-20C08E63 8.00 8.00 20.00 63.00 2 30.0 5.0 C O O 0.03-0.09 EC-A2 09-20C09E60 9.00 9.00 20.00 60.00 2 30.0 5.0 C O O 0.03-0.09 EC-A2 10-22C10E72 10.00 10.00 22.00 72.00 2 30.0 5.0 C O O 0.03-0.10 EC-A2 12-22C12E70 12.00 12.00 22.00 70.00 2 30.0 5.0 C O O 0.04-0.11 (1) C-Cylindrical E32 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
