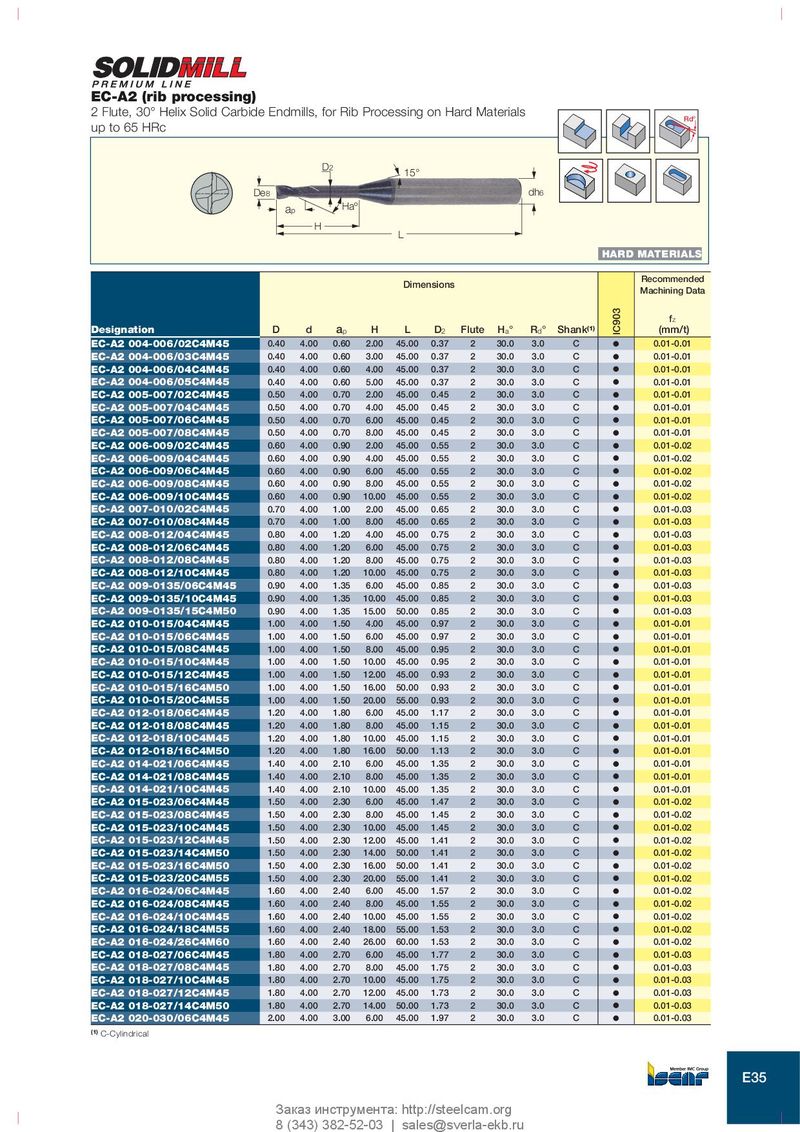

EC-A2 (rib processing) 2 Flute, 30° Helix Solid Carbide Endmills, for Rib Processing on Hard Materials Rd° up to 65 HRc D2 15° De8 dh6 ap Haº H L HARD MATERIALS Recommended Dimensions Machining Data f z Designation D d a p H L D 2 Flute H a ° R d ° Shank (1) IC903 (mm/t) EC-A2 004-006/02C4M45 0.40 4.00 0.60 2.00 45.00 0.37 2 30.0 3.0 C O 0.01-0.01 EC-A2 004-006/03C4M45 0.40 4.00 0.60 3.00 45.00 0.37 2 30.0 3.0 C O 0.01-0.01 EC-A2 004-006/04C4M45 0.40 4.00 0.60 4.00 45.00 0.37 2 30.0 3.0 C O 0.01-0.01 EC-A2 004-006/05C4M45 0.40 4.00 0.60 5.00 45.00 0.37 2 30.0 3.0 C O 0.01-0.01 EC-A2 005-007/02C4M45 0.50 4.00 0.70 2.00 45.00 0.45 2 30.0 3.0 C O 0.01-0.01 EC-A2 005-007/04C4M45 0.50 4.00 0.70 4.00 45.00 0.45 2 30.0 3.0 C O 0.01-0.01 EC-A2 005-007/06C4M45 0.50 4.00 0.70 6.00 45.00 0.45 2 30.0 3.0 C O 0.01-0.01 EC-A2 005-007/08C4M45 0.50 4.00 0.70 8.00 45.00 0.45 2 30.0 3.0 C O 0.01-0.01 EC-A2 006-009/02C4M45 0.60 4.00 0.90 2.00 45.00 0.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 006-009/04C4M45 0.60 4.00 0.90 4.00 45.00 0.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 006-009/06C4M45 0.60 4.00 0.90 6.00 45.00 0.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 006-009/08C4M45 0.60 4.00 0.90 8.00 45.00 0.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 006-009/10C4M45 0.60 4.00 0.90 10.00 45.00 0.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 007-010/02C4M45 0.70 4.00 1.00 2.00 45.00 0.65 2 30.0 3.0 C O 0.01-0.03 EC-A2 007-010/08C4M45 0.70 4.00 1.00 8.00 45.00 0.65 2 30.0 3.0 C O 0.01-0.03 EC-A2 008-012/04C4M45 0.80 4.00 1.20 4.00 45.00 0.75 2 30.0 3.0 C O 0.01-0.03 EC-A2 008-012/06C4M45 0.80 4.00 1.20 6.00 45.00 0.75 2 30.0 3.0 C O 0.01-0.03 EC-A2 008-012/08C4M45 0.80 4.00 1.20 8.00 45.00 0.75 2 30.0 3.0 C O 0.01-0.03 EC-A2 008-012/10C4M45 0.80 4.00 1.20 10.00 45.00 0.75 2 30.0 3.0 C O 0.01-0.03 EC-A2 009-0135/06C4M45 0.90 4.00 1.35 6.00 45.00 0.85 2 30.0 3.0 C O 0.01-0.03 EC-A2 009-0135/10C4M45 0.90 4.00 1.35 10.00 45.00 0.85 2 30.0 3.0 C O 0.01-0.03 EC-A2 009-0135/15C4M50 0.90 4.00 1.35 15.00 50.00 0.85 2 30.0 3.0 C O 0.01-0.03 EC-A2 010-015/04C4M45 1.00 4.00 1.50 4.00 45.00 0.97 2 30.0 3.0 C O 0.01-0.01 EC-A2 010-015/06C4M45 1.00 4.00 1.50 6.00 45.00 0.97 2 30.0 3.0 C O 0.01-0.01 EC-A2 010-015/08C4M45 1.00 4.00 1.50 8.00 45.00 0.95 2 30.0 3.0 C O 0.01-0.01 EC-A2 010-015/10C4M45 1.00 4.00 1.50 10.00 45.00 0.95 2 30.0 3.0 C O 0.01-0.01 EC-A2 010-015/12C4M45 1.00 4.00 1.50 12.00 45.00 0.93 2 30.0 3.0 C O 0.01-0.01 EC-A2 010-015/16C4M50 1.00 4.00 1.50 16.00 50.00 0.93 2 30.0 3.0 C O 0.01-0.01 EC-A2 010-015/20C4M55 1.00 4.00 1.50 20.00 55.00 0.93 2 30.0 3.0 C O 0.01-0.01 EC-A2 012-018/06C4M45 1.20 4.00 1.80 6.00 45.00 1.17 2 30.0 3.0 C O 0.01-0.01 EC-A2 012-018/08C4M45 1.20 4.00 1.80 8.00 45.00 1.15 2 30.0 3.0 C O 0.01-0.01 EC-A2 012-018/10C4M45 1.20 4.00 1.80 10.00 45.00 1.15 2 30.0 3.0 C O 0.01-0.01 EC-A2 012-018/16C4M50 1.20 4.00 1.80 16.00 50.00 1.13 2 30.0 3.0 C O 0.01-0.01 EC-A2 014-021/06C4M45 1.40 4.00 2.10 6.00 45.00 1.35 2 30.0 3.0 C O 0.01-0.01 EC-A2 014-021/08C4M45 1.40 4.00 2.10 8.00 45.00 1.35 2 30.0 3.0 C O 0.01-0.01 EC-A2 014-021/10C4M45 1.40 4.00 2.10 10.00 45.00 1.35 2 30.0 3.0 C O 0.01-0.01 EC-A2 015-023/06C4M45 1.50 4.00 2.30 6.00 45.00 1.47 2 30.0 3.0 C O 0.01-0.02 EC-A2 015-023/08C4M45 1.50 4.00 2.30 8.00 45.00 1.45 2 30.0 3.0 C O 0.01-0.02 EC-A2 015-023/10C4M45 1.50 4.00 2.30 10.00 45.00 1.45 2 30.0 3.0 C O 0.01-0.02 EC-A2 015-023/12C4M45 1.50 4.00 2.30 12.00 45.00 1.41 2 30.0 3.0 C O 0.01-0.02 EC-A2 015-023/14C4M50 1.50 4.00 2.30 14.00 50.00 1.41 2 30.0 3.0 C O 0.01-0.02 EC-A2 015-023/16C4M50 1.50 4.00 2.30 16.00 50.00 1.41 2 30.0 3.0 C O 0.01-0.02 EC-A2 015-023/20C4M55 1.50 4.00 2.30 20.00 55.00 1.41 2 30.0 3.0 C O 0.01-0.02 EC-A2 016-024/06C4M45 1.60 4.00 2.40 6.00 45.00 1.57 2 30.0 3.0 C O 0.01-0.02 EC-A2 016-024/08C4M45 1.60 4.00 2.40 8.00 45.00 1.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 016-024/10C4M45 1.60 4.00 2.40 10.00 45.00 1.55 2 30.0 3.0 C O 0.01-0.02 EC-A2 016-024/18C4M55 1.60 4.00 2.40 18.00 55.00 1.53 2 30.0 3.0 C O 0.01-0.02 EC-A2 016-024/26C4M60 1.60 4.00 2.40 26.00 60.00 1.53 2 30.0 3.0 C O 0.01-0.02 EC-A2 018-027/06C4M45 1.80 4.00 2.70 6.00 45.00 1.77 2 30.0 3.0 C O 0.01-0.03 EC-A2 018-027/08C4M45 1.80 4.00 2.70 8.00 45.00 1.75 2 30.0 3.0 C O 0.01-0.03 EC-A2 018-027/10C4M45 1.80 4.00 2.70 10.00 45.00 1.75 2 30.0 3.0 C O 0.01-0.03 EC-A2 018-027/12C4M45 1.80 4.00 2.70 12.00 45.00 1.73 2 30.0 3.0 C O 0.01-0.03 EC-A2 018-027/14C4M50 1.80 4.00 2.70 14.00 50.00 1.73 2 30.0 3.0 C O 0.01-0.03 EC-A2 020-030/06C4M45 2.00 4.00 3.00 6.00 45.00 1.97 2 30.0 3.0 C O 0.01-0.03 (1) C-Cylindrical E35 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
