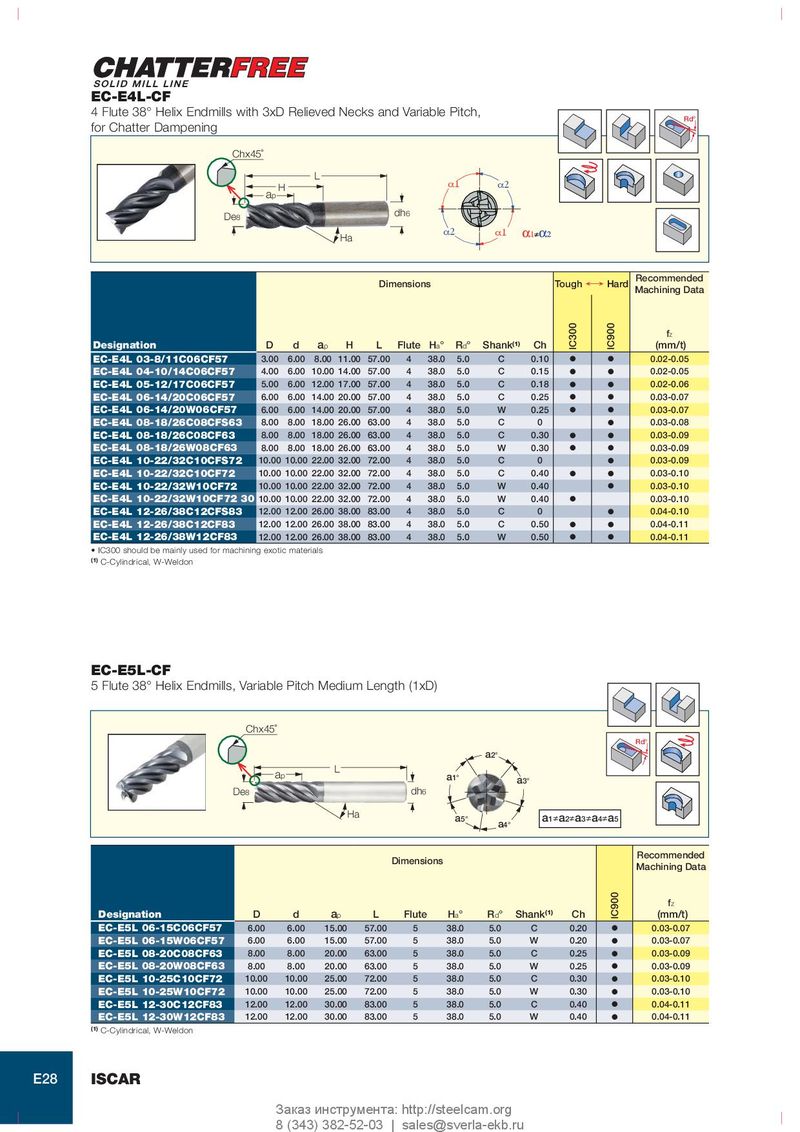

EC-E4L-CF 4 Flute 38° Helix Endmills with 3xD Relieved Necks and Variable Pitch, Rd° for Chatter Dampening Chx45˚ L H _ _ ap De8 dh6 _ _ Ha Recommended Dimensions Tough ¥ Hard Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (1) Ch IC300 IC900 (mm/t) EC-E4L 03-8/11C06CF57 3.00 6.00 8.00 11.00 57.00 4 38.0 5.0 C 0.10 O O 0.02-0.05 EC-E4L 04-10/14C06CF57 4.00 6.00 10.00 14.00 57.00 4 38.0 5.0 C 0.15 O O 0.02-0.05 EC-E4L 05-12/17C06CF57 5.00 6.00 12.00 17.00 57.00 4 38.0 5.0 C 0.18 O O 0.02-0.06 EC-E4L 06-14/20C06CF57 6.00 6.00 14.00 20.00 57.00 4 38.0 5.0 C 0.25 O O 0.03-0.07 EC-E4L 06-14/20W06CF57 6.00 6.00 14.00 20.00 57.00 4 38.0 5.0 W 0.25 O O 0.03-0.07 EC-E4L 08-18/26C08CFS63 8.00 8.00 18.00 26.00 63.00 4 38.0 5.0 C 0 O 0.03-0.08 EC-E4L 08-18/26C08CF63 8.00 8.00 18.00 26.00 63.00 4 38.0 5.0 C 0.30 O O 0.03-0.09 EC-E4L 08-18/26W08CF63 8.00 8.00 18.00 26.00 63.00 4 38.0 5.0 W 0.30 O O 0.03-0.09 EC-E4L 10-22/32C10CFS72 10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 C 0 O 0.03-0.09 EC-E4L 10-22/32C10CF72 10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 C 0.40 O O 0.03-0.10 EC-E4L 10-22/32W10CF72 10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 W 0.40 O 0.03-0.10 EC-E4L 10-22/32W10CF72 30 10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 W 0.40 O 0.03-0.10 EC-E4L 12-26/38C12CFS83 12.00 12.00 26.00 38.00 83.00 4 38.0 5.0 C 0 O 0.04-0.10 EC-E4L 12-26/38C12CF83 12.00 12.00 26.00 38.00 83.00 4 38.0 5.0 C 0.50 O O 0.04-0.11 EC-E4L 12-26/38W12CF83 12.00 12.00 26.00 38.00 83.00 4 38.0 5.0 W 0.50 O O 0.04-0.11 • IC300 should be mainly used for machining exotic materials (1) C-Cylindrical, W-Weldon EC-E5L-CF 5 Flute 38° Helix Endmills, Variable Pitch Medium Length (1xD) Chx45˚ Rd° a2° L ap a1° a3° De8 dh6 Ha a5° a1≠a2≠a3≠a4≠a5 a4° Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) Ch IC900 (mm/t) EC-E5L 06-15C06CF57 6.00 6.00 15.00 57.00 5 38.0 5.0 C 0.20 O 0.03-0.07 EC-E5L 06-15W06CF57 6.00 6.00 15.00 57.00 5 38.0 5.0 W 0.20 O 0.03-0.07 EC-E5L 08-20C08CF63 8.00 8.00 20.00 63.00 5 38.0 5.0 C 0.25 O 0.03-0.09 EC-E5L 08-20W08CF63 8.00 8.00 20.00 63.00 5 38.0 5.0 W 0.25 O 0.03-0.09 EC-E5L 10-25C10CF72 10.00 10.00 25.00 72.00 5 38.0 5.0 C 0.30 O 0.03-0.10 EC-E5L 10-25W10CF72 10.00 10.00 25.00 72.00 5 38.0 5.0 W 0.30 O 0.03-0.10 EC-E5L 12-30C12CF83 12.00 12.00 30.00 83.00 5 38.0 5.0 C 0.40 O 0.04-0.11 EC-E5L 12-30W12CF83 12.00 12.00 30.00 83.00 5 38.0 5.0 W 0.40 O 0.04-0.11 (1) C-Cylindrical, W-Weldon E28 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
