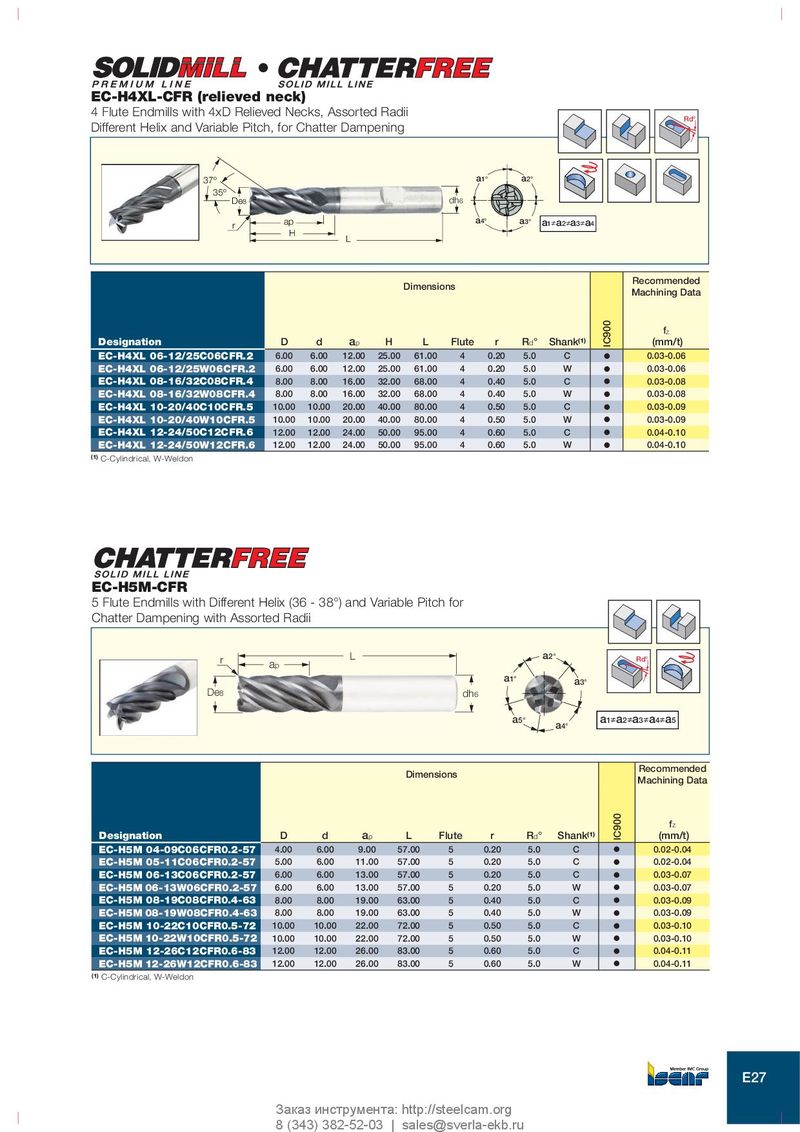

 O  EC-H4XL-CFR (relieved neck) 4 Flute Endmills with 4xD Relieved Necks, Assorted Radii Rd° Different Helix and Variable Pitch, for Chatter Dampening 37º a1° a2° 35º De8 dh 6 ap a4° a3° r a1≠a2≠a3≠a4 H L Recommended Dimensions Machining Data f z Designation D d a p H L Flute r R d ° Shank (1) IC900 (mm/t) EC-H4XL 06-12/25C06CFR.2 6.00 6.00 12.00 25.00 61.00 4 0.20 5.0 C O 0.03-0.06 EC-H4XL 06-12/25W06CFR.2 6.00 6.00 12.00 25.00 61.00 4 0.20 5.0 W O 0.03-0.06 EC-H4XL 08-16/32C08CFR.4 8.00 8.00 16.00 32.00 68.00 4 0.40 5.0 C O 0.03-0.08 EC-H4XL 08-16/32W08CFR.4 8.00 8.00 16.00 32.00 68.00 4 0.40 5.0 W O 0.03-0.08 EC-H4XL 10-20/40C10CFR.5 10.00 10.00 20.00 40.00 80.00 4 0.50 5.0 C O 0.03-0.09 EC-H4XL 10-20/40W10CFR.5 10.00 10.00 20.00 40.00 80.00 4 0.50 5.0 W O 0.03-0.09 EC-H4XL 12-24/50C12CFR.6 12.00 12.00 24.00 50.00 95.00 4 0.60 5.0 C O 0.04-0.10 EC-H4XL 12-24/50W12CFR.6 12.00 12.00 24.00 50.00 95.00 4 0.60 5.0 W O 0.04-0.10 (1) C-Cylindrical, W-Weldon EC-H5M-CFR 5 Flute Endmills with Different Helix (36 - 38°) and Variable Pitch for Chatter Dampening with Assorted Radii a2° r L Rd° ap a1° a3° De8 dh6 a5° a1≠a2≠a3≠a4≠a5 a4° Recommended Dimensions Machining Data f z Designation D d a p L Flute r R d ° Shank (1) IC900 (mm/t) EC-H5M 04-09C06CFR0.2-57 4.00 6.00 9.00 57.00 5 0.20 5.0 C O 0.02-0.04 EC-H5M 05-11C06CFR0.2-57 5.00 6.00 11.00 57.00 5 0.20 5.0 C O 0.02-0.04 EC-H5M 06-13C06CFR0.2-57 6.00 6.00 13.00 57.00 5 0.20 5.0 C O 0.03-0.07 EC-H5M 06-13W06CFR0.2-57 6.00 6.00 13.00 57.00 5 0.20 5.0 W O 0.03-0.07 EC-H5M 08-19C08CFR0.4-63 8.00 8.00 19.00 63.00 5 0.40 5.0 C O 0.03-0.09 EC-H5M 08-19W08CFR0.4-63 8.00 8.00 19.00 63.00 5 0.40 5.0 W O 0.03-0.09 EC-H5M 10-22C10CFR0.5-72 10.00 10.00 22.00 72.00 5 0.50 5.0 C O 0.03-0.10 EC-H5M 10-22W10CFR0.5-72 10.00 10.00 22.00 72.00 5 0.50 5.0 W O 0.03-0.10 EC-H5M 12-26C12CFR0.6-83 12.00 12.00 26.00 83.00 5 0.60 5.0 C O 0.04-0.11 EC-H5M 12-26W12CFR0.6-83 12.00 12.00 26.00 83.00 5 0.60 5.0 W O 0.04-0.11 (1) C-Cylindrical, W-Weldon E27 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
