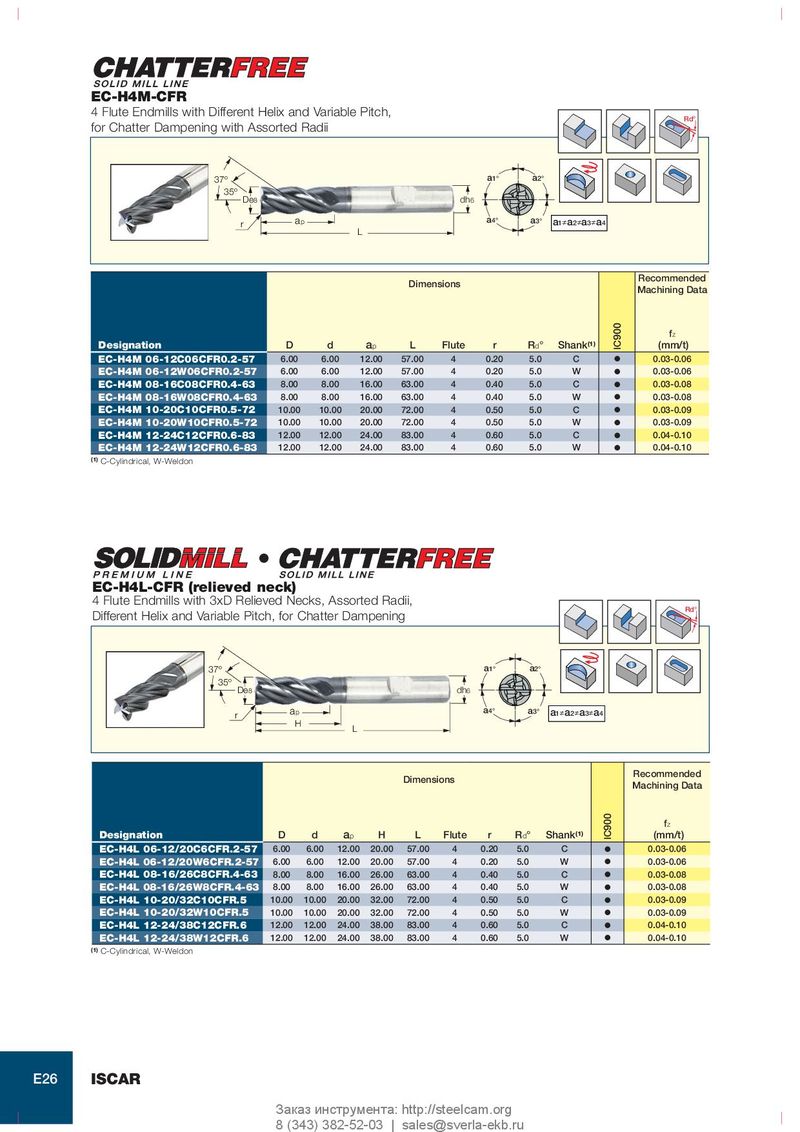

EC-H4M-CFR 4 Flute Endmills with Different Helix and Variable Pitch, Rd° for Chatter Dampening with Assorted Radii 37º a1° a2° 35º De8 dh6 a4° a3° r ap a1≠a2≠a3≠a4 L Recommended Dimensions Machining Data f z Designation D d a p L Flute r R d ° Shank (1) IC900 (mm/t) EC-H4M 06-12C06CFR0.2-57 6.00 6.00 12.00 57.00 4 0.20 5.0 C O 0.03-0.06 EC-H4M 06-12W06CFR0.2-57 6.00 6.00 12.00 57.00 4 0.20 5.0 W O 0.03-0.06 EC-H4M 08-16C08CFR0.4-63 8.00 8.00 16.00 63.00 4 0.40 5.0 C O 0.03-0.08 EC-H4M 08-16W08CFR0.4-63 8.00 8.00 16.00 63.00 4 0.40 5.0 W O 0.03-0.08 EC-H4M 10-20C10CFR0.5-72 10.00 10.00 20.00 72.00 4 0.50 5.0 C O 0.03-0.09 EC-H4M 10-20W10CFR0.5-72 10.00 10.00 20.00 72.00 4 0.50 5.0 W O 0.03-0.09 EC-H4M 12-24C12CFR0.6-83 12.00 12.00 24.00 83.00 4 0.60 5.0 C O 0.04-0.10 EC-H4M 12-24W12CFR0.6-83 12.00 12.00 24.00 83.00 4 0.60 5.0 W O 0.04-0.10 (1) C-Cylindrical, W-Weldon  O  EC-H4L-CFR (relieved neck) 4 Flute Endmills with 3xD Relieved Necks, Assorted Radii, Rd° Different Helix and Variable Pitch, for Chatter Dampening 37º a1° a2° 35º De8 dh6 a4° a3° r ap a1≠a2≠a3≠a4 H L Recommended Dimensions Machining Data f z Designation D d a p H L Flute r R d ° Shank (1) IC900 (mm/t) EC-H4L 06-12/20C6CFR.2-57 6.00 6.00 12.00 20.00 57.00 4 0.20 5.0 C O 0.03-0.06 EC-H4L 06-12/20W6CFR.2-57 6.00 6.00 12.00 20.00 57.00 4 0.20 5.0 W O 0.03-0.06 EC-H4L 08-16/26C8CFR.4-63 8.00 8.00 16.00 26.00 63.00 4 0.40 5.0 C O 0.03-0.08 EC-H4L 08-16/26W8CFR.4-63 8.00 8.00 16.00 26.00 63.00 4 0.40 5.0 W O 0.03-0.08 EC-H4L 10-20/32C10CFR.5 10.00 10.00 20.00 32.00 72.00 4 0.50 5.0 C O 0.03-0.09 EC-H4L 10-20/32W10CFR.5 10.00 10.00 20.00 32.00 72.00 4 0.50 5.0 W O 0.03-0.09 EC-H4L 12-24/38C12CFR.6 12.00 12.00 24.00 38.00 83.00 4 0.60 5.0 C O 0.04-0.10 EC-H4L 12-24/38W12CFR.6 12.00 12.00 24.00 38.00 83.00 4 0.60 5.0 W O 0.04-0.10 (1) C-Cylindrical, W-Weldon E26 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
