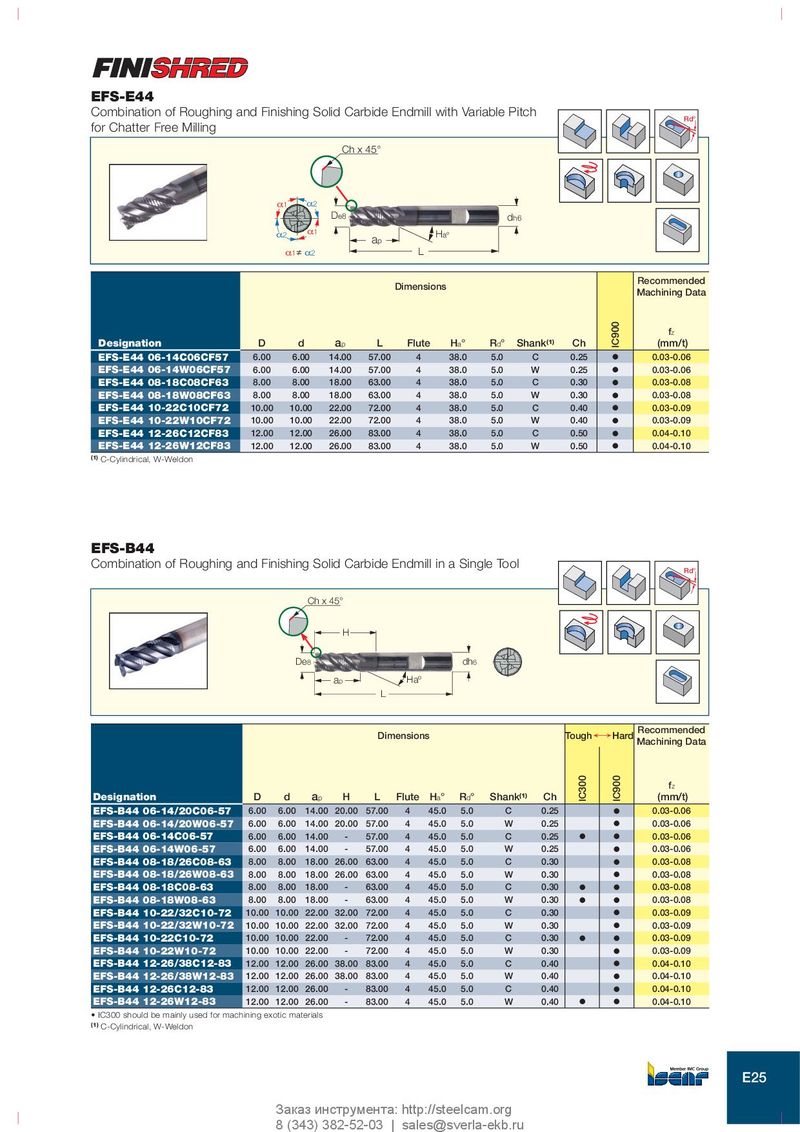

EFS-E44 Combination of Roughing and Finishing Solid Carbide Endmill with Variable Pitch Rd° for Chatter Free Milling Ch x 45° _1 _2 De8 dh6 _2 _1 Haº ap _1≠ _2 L Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) Ch IC900 (mm/t) EFS-E44 06-14C06CF57 6.00 6.00 14.00 57.00 4 38.0 5.0 C 0.25 O 0.03-0.06 EFS-E44 06-14W06CF57 6.00 6.00 14.00 57.00 4 38.0 5.0 W 0.25 O 0.03-0.06 EFS-E44 08-18C08CF63 8.00 8.00 18.00 63.00 4 38.0 5.0 C 0.30 O 0.03-0.08 EFS-E44 08-18W08CF63 8.00 8.00 18.00 63.00 4 38.0 5.0 W 0.30 O 0.03-0.08 EFS-E44 10-22C10CF72 10.00 10.00 22.00 72.00 4 38.0 5.0 C 0.40 O 0.03-0.09 EFS-E44 10-22W10CF72 10.00 10.00 22.00 72.00 4 38.0 5.0 W 0.40 O 0.03-0.09 EFS-E44 12-26C12CF83 12.00 12.00 26.00 83.00 4 38.0 5.0 C 0.50 O 0.04-0.10 EFS-E44 12-26W12CF83 12.00 12.00 26.00 83.00 4 38.0 5.0 W 0.50 O 0.04-0.10 (1) C-Cylindrical, W-Weldon EFS-B44 Combination of Roughing and Finishing Solid Carbide Endmill in a Single Tool Rd° Ch x 45° H De8 dh6 ap Haº L Recommended Dimensions Tough ¥ Hard Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (1) Ch IC300 IC900 (mm/t) EFS-B44 06-14/20C06-57 6.00 6.00 14.00 20.00 57.00 4 45.0 5.0 C 0.25 O 0.03-0.06 EFS-B44 06-14/20W06-57 6.00 6.00 14.00 20.00 57.00 4 45.0 5.0 W 0.25 O 0.03-0.06 EFS-B44 06-14C06-57 6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 0.25 O O 0.03-0.06 EFS-B44 06-14W06-57 6.00 6.00 14.00 - 57.00 4 45.0 5.0 W 0.25 O 0.03-0.06 EFS-B44 08-18/26C08-63 8.00 8.00 18.00 26.00 63.00 4 45.0 5.0 C 0.30 O 0.03-0.08 EFS-B44 08-18/26W08-63 8.00 8.00 18.00 26.00 63.00 4 45.0 5.0 W 0.30 O 0.03-0.08 EFS-B44 08-18C08-63 8.00 8.00 18.00 - 63.00 4 45.0 5.0 C 0.30 O O 0.03-0.08 EFS-B44 08-18W08-63 8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 0.30 O O 0.03-0.08 EFS-B44 10-22/32C10-72 10.00 10.00 22.00 32.00 72.00 4 45.0 5.0 C 0.30 O 0.03-0.09 EFS-B44 10-22/32W10-72 10.00 10.00 22.00 32.00 72.00 4 45.0 5.0 W 0.30 O 0.03-0.09 EFS-B44 10-22C10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 C 0.30 O O 0.03-0.09 EFS-B44 10-22W10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 0.30 O 0.03-0.09 EFS-B44 12-26/38C12-83 12.00 12.00 26.00 38.00 83.00 4 45.0 5.0 C 0.40 O 0.04-0.10 EFS-B44 12-26/38W12-83 12.00 12.00 26.00 38.00 83.00 4 45.0 5.0 W 0.40 O 0.04-0.10 EFS-B44 12-26C12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 C 0.40 O 0.04-0.10 EFS-B44 12-26W12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 0.40 O O 0.04-0.10 • IC300 should be mainly used for machining exotic materials (1) C-Cylindrical, W-Weldon E25 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
