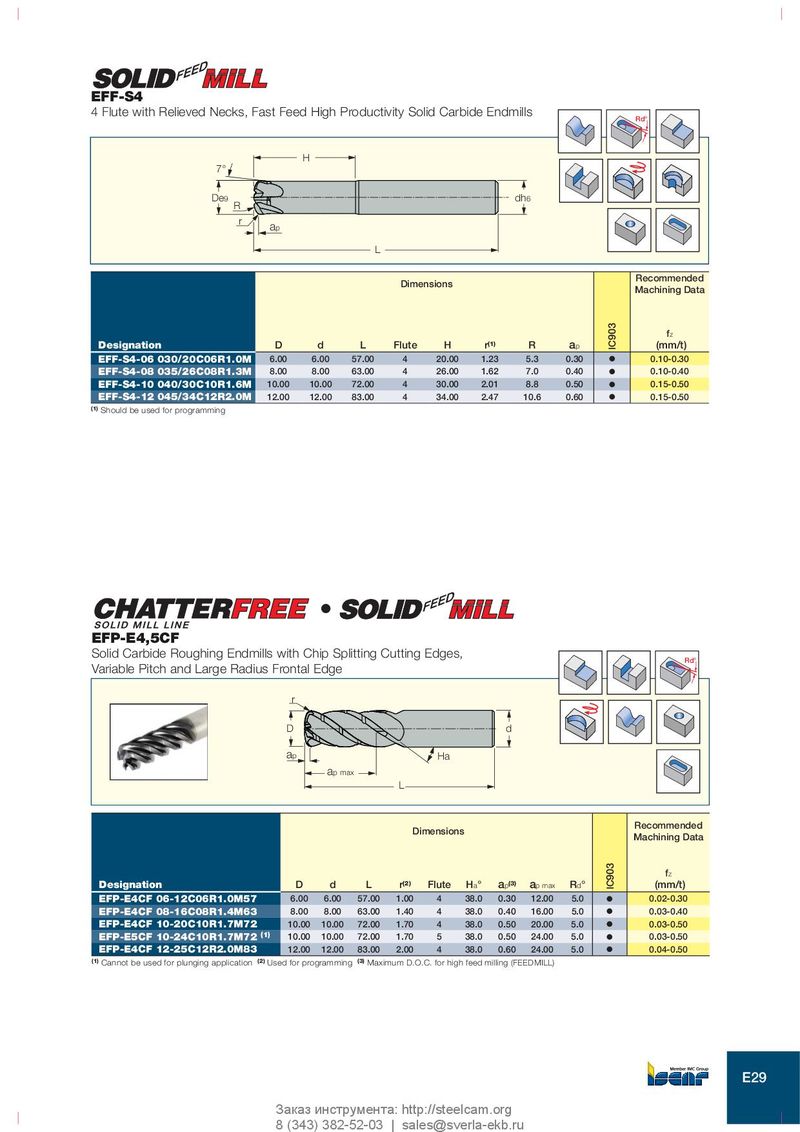

EFF-S4 4 Flute with Relieved Necks, Fast Feed High Productivity Solid Carbide Endmills Rd° H 7° De9 dh6 R r ap L Recommended Dimensions Machining Data f z Designation D d L Flute H r (1) R a p IC903 (mm/t) EFF-S4-06 030/20C06R1.0M 6.00 6.00 57.00 4 20.00 1.23 5.3 0.30 O 0.10-0.30 EFF-S4-08 035/26C08R1.3M 8.00 8.00 63.00 4 26.00 1.62 7.0 0.40 O 0.10-0.40 EFF-S4-10 040/30C10R1.6M 10.00 10.00 72.00 4 30.00 2.01 8.8 0.50 O 0.15-0.50 EFF-S4-12 045/34C12R2.0M 12.00 12.00 83.00 4 34.00 2.47 10.6 0.60 O 0.15-0.50 (1) Should be used for programming  O  EFP-E4,5CF Solid Carbide Roughing Endmills with Chip Splitting Cutting Edges, Rd° Variable Pitch and Large Radius Frontal Edge r D d ap Ha ap max L Recommended Dimensions Machining Data f z Designation D d L r (2) Flute H a ° a p (3) a p max R d ° IC903 (mm/t) EFP-E4CF 06-12C06R1.0M57 6.00 6.00 57.00 1.00 4 38.0 0.30 12.00 5.0 O 0.02-0.30 EFP-E4CF 08-16C08R1.4M63 8.00 8.00 63.00 1.40 4 38.0 0.40 16.00 5.0 O 0.03-0.40 EFP-E4CF 10-20C10R1.7M72 10.00 10.00 72.00 1.70 4 38.0 0.50 20.00 5.0 O 0.03-0.50 EFP-E5CF 10-24C10R1.7M72 (1) 10.00 10.00 72.00 1.70 5 38.0 0.50 24.00 5.0 O 0.03-0.50 EFP-E4CF 12-25C12R2.0M83 12.00 12.00 83.00 2.00 4 38.0 0.60 24.00 5.0 O 0.04-0.50 (1) Cannot be used for plunging application (2) Used for programming (3) Maximum D.O.C. for high feed milling (FEEDMILL) E29 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
