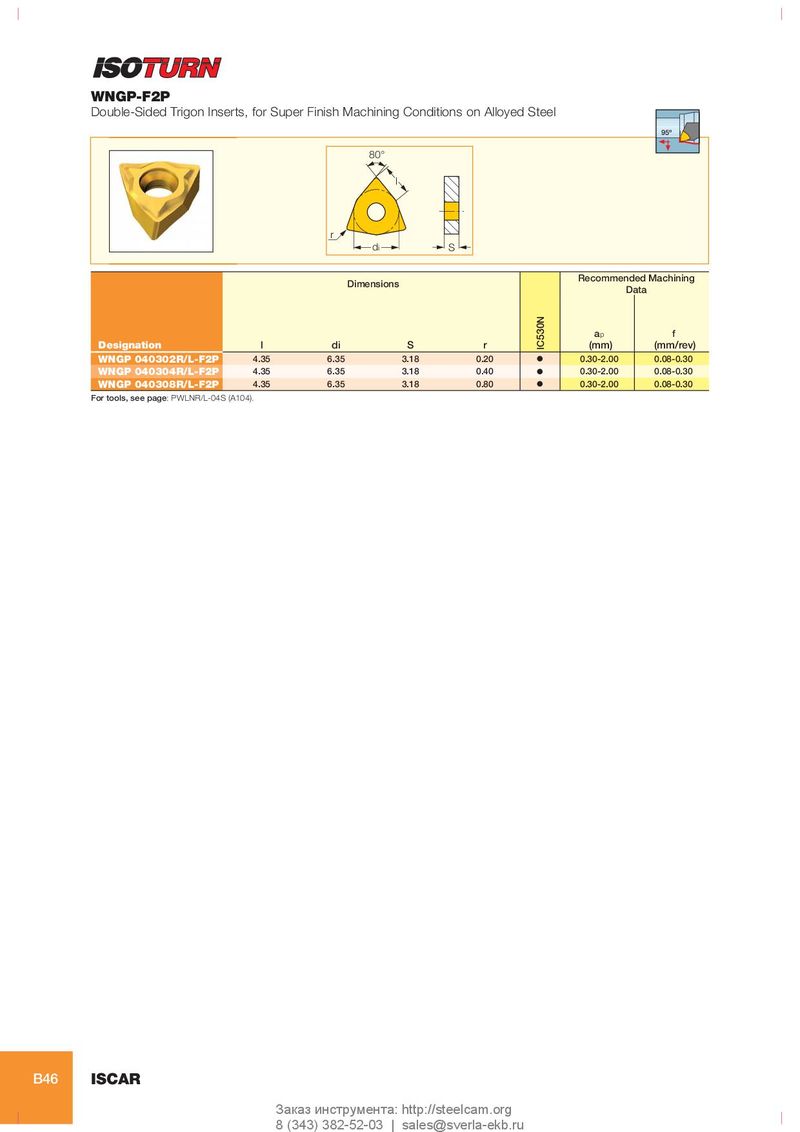

WNGP-F2P Double-Sided Trigon Inserts, for Super Finish Machining Conditions on Alloyed Steel 95º 80° l r di S Recommended Machining Dimensions Data a p f Designation l di S r IC530N (mm) (mm/rev) WNGP 040302R/L-F2P 4.35 6.35 3.18 0.20 O 0.30-2.00 0.08-0.30 WNGP 040304R/L-F2P 4.35 6.35 3.18 0.40 O 0.30-2.00 0.08-0.30 WNGP 040308R/L-F2P 4.35 6.35 3.18 0.80 O 0.30-2.00 0.08-0.30 For tools, see page: PWLNR/L-04S (A104). B46 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
