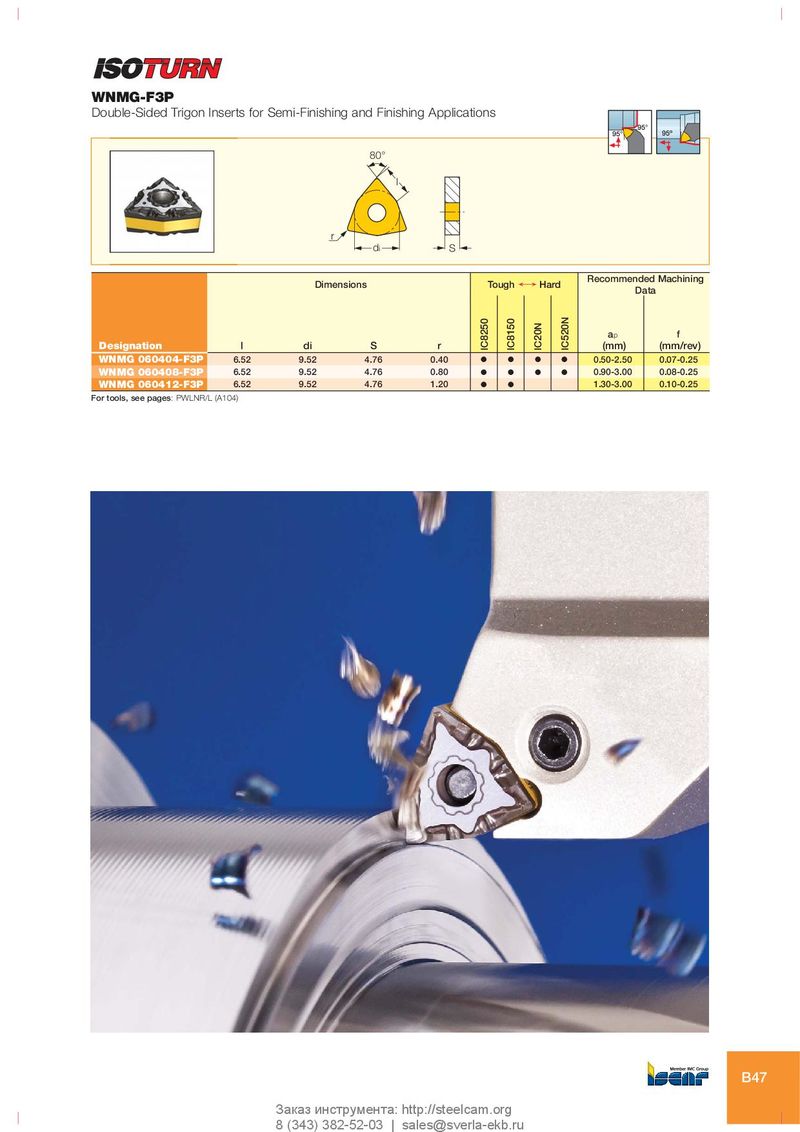

WNMG-F3P Double-Sided Trigon Inserts for Semi-Finishing and Finishing Applications 95° 95° 95º 80° l r di S Recommended Machining Dimensions Tough ¥ Hard Data a p f Designation l di S r IC8250 IC8150 IC20N IC520N (mm) (mm/rev) WNMG 060404-F3P 6.52 9.52 4.76 0.40 O O O O 0.50-2.50 0.07-0.25 WNMG 060408-F3P 6.52 9.52 4.76 0.80 O O O O 0.90-3.00 0.08-0.25 WNMG 060412-F3P 6.52 9.52 4.76 1.20 O O 1.30-3.00 0.10-0.25 For tools, see pages: PWLNR/L (A104) B47 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
