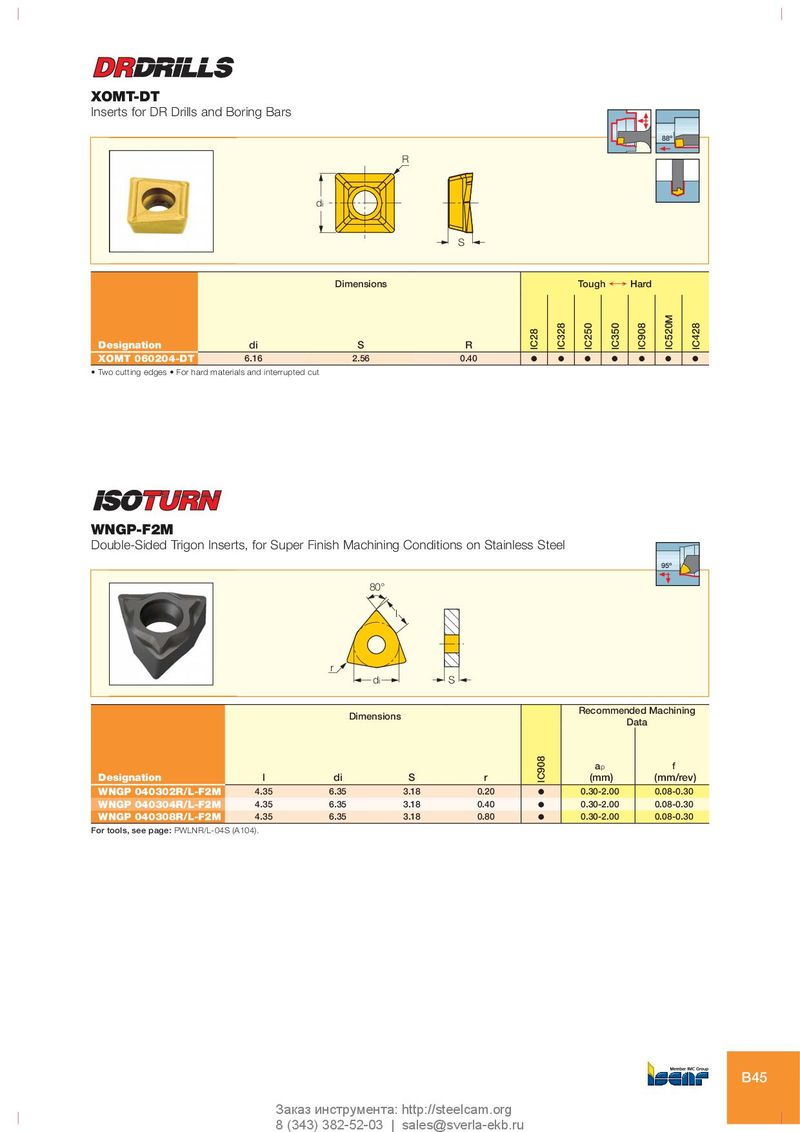

XOMT-DT Inserts for DR Drills and Boring Bars 88º R di S Dimensions Tough ¥ Hard Designation di S R IC28 IC328 IC250 IC350 IC908 IC520M IC428 XOMT 060204-DT 6.16 2.56 0.40 O O O O O O O • Two cutting edges • For hard materials and interrupted cut WNGP-F2M Double-Sided Trigon Inserts, for Super Finish Machining Conditions on Stainless Steel 95º 80° l r di S Recommended Machining Dimensions Data a p f Designation l di S r IC908 (mm) (mm/rev) WNGP 040302R/L-F2M 4.35 6.35 3.18 0.20 O 0.30-2.00 0.08-0.30 WNGP 040304R/L-F2M 4.35 6.35 3.18 0.40 O 0.30-2.00 0.08-0.30 WNGP 040308R/L-F2M 4.35 6.35 3.18 0.80 O 0.30-2.00 0.08-0.30 For tools, see page: PWLNR/L-04S (A104). B45 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
