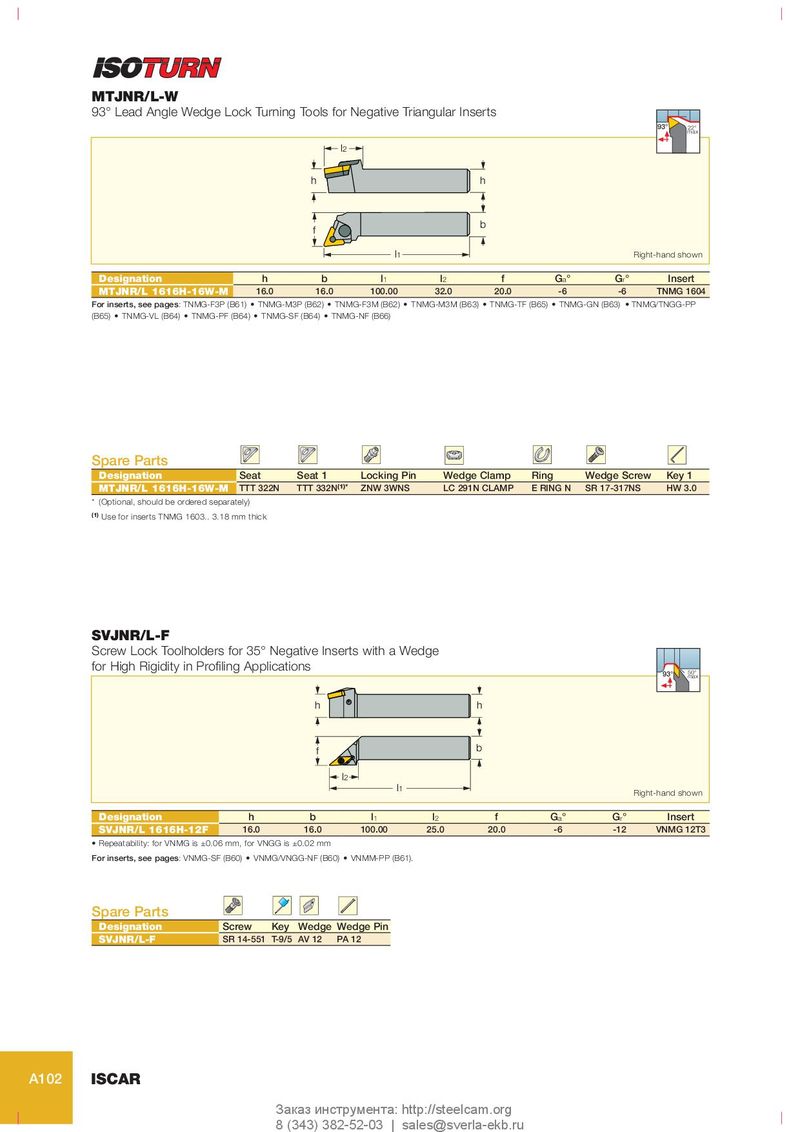

MTJNR/L-W 93° Lead Angle Wedge Lock Turning Tools for Negative Triangular Inserts 93° 22° max l2 h h b f l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert MTJNR/L 1616H-16W-M 16.0 16.0 100.00 32.0 20.0 -6 -6 TNMG 1604 For inserts, see pages: TNMG-F3P (B61) • TNMG-M3P (B62) • TNMG-F3M (B62) • TNMG-M3M (B63) • TNMG-TF (B65) • TNMG-GN (B63) • TNMG/TNGG-PP (B65) • TNMG-VL (B64) • TNMG-PF (B64) • TNMG-SF (B64) • TNMG-NF (B66) Spare Parts Designation Seat Seat 1 Locking Pin Wedge Clamp Ring Wedge Screw Key 1 MTJNR/L 1616H-16W-M TTT 322N TTT 332N (1)* ZNW 3WNS LC 291N CLAMP E RING N SR 17-317NS HW 3.0 * (Optional, should be ordered separately) (1) Use for inserts TNMG 1603.. 3.18 mm thick SVJNR/L-F Screw Lock Toolholders for 35° Negative Inserts with a Wedge for High Rigidity in Profiling Applications 93° 50° max h h f b l2 l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SVJNR/L 1616H-12F 16.0 16.0 100.00 25.0 20.0 -6 -12 VNMG 12T3 • Repeatability: for VNMG is ±0.06 mm, for VNGG is ±0.02 mm For inserts, see pages: VNMG-SF (B60) • VNMG/VNGG-NF (B60) • VNMM-PP (B61). Spare Parts Designation Screw Key Wedge Wedge Pin SVJNR/L-F SR 14-551 T-9/5 AV 12 PA 12 A102 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
