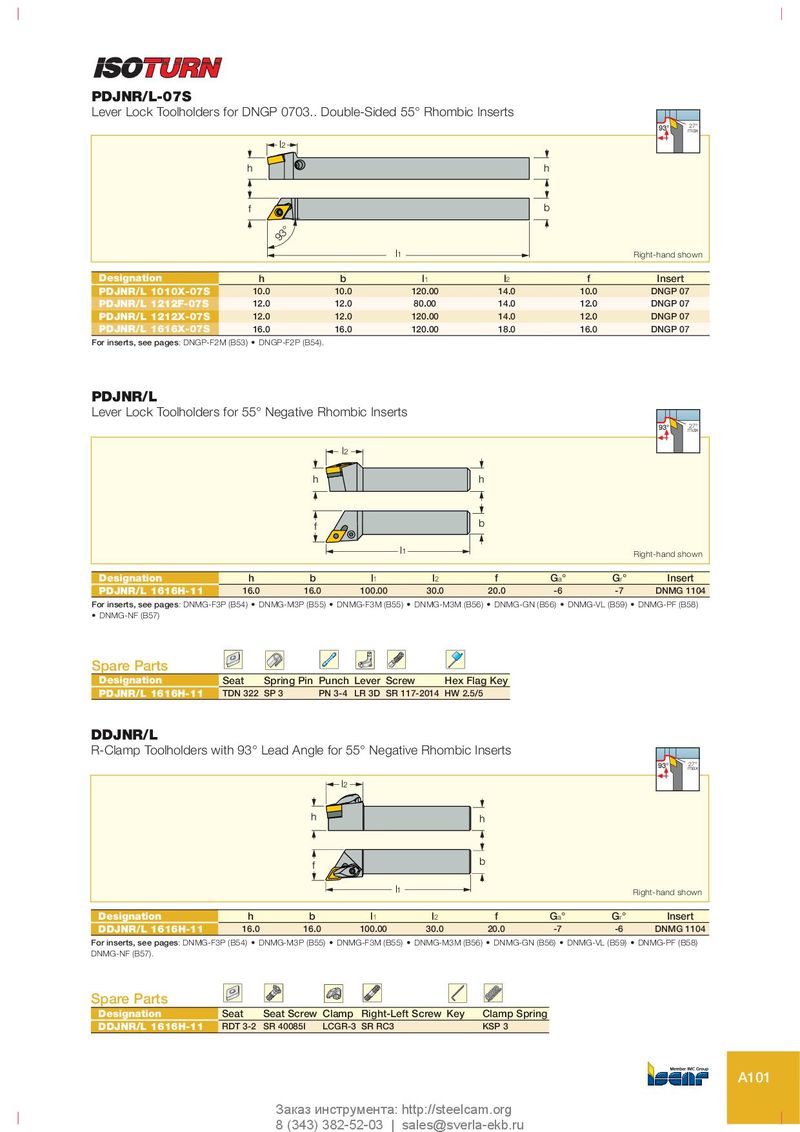

PDJNR/L-07S Lever Lock Toolholders for DNGP 0703.. Double-Sided 55° Rhombic Inserts 93° 27° max l2 h h f b 93° l1 Right-hand shown Designation h b l 1 l 2 f Insert PDJNR/L 1010X-07S 10.0 10.0 120.00 14.0 10.0 DNGP 07 PDJNR/L 1212F-07S 12.0 12.0 80.00 14.0 12.0 DNGP 07 PDJNR/L 1212X-07S 12.0 12.0 120.00 14.0 12.0 DNGP 07 PDJNR/L 1616X-07S 16.0 16.0 120.00 18.0 16.0 DNGP 07 For inserts, see pages: DNGP-F2M (B53) • DNGP-F2P (B54). PDJNR/L Lever Lock Toolholders for 55° Negative Rhombic Inserts 93° 27° max l2 h h f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PDJNR/L 1616H-11 16.0 16.0 100.00 30.0 20.0 -6 -7 DNMG 1104 For inserts, see pages: DNMG-F3P (B54) • DNMG-M3P (B55) • DNMG-F3M (B55) • DNMG-M3M (B56) • DNMG-GN (B56) • DNMG-VL (B59) • DNMG-PF (B58) • DNMG-NF (B57) Spare Parts Designation Seat Spring Pin Punch Lever Screw Hex Flag Key PDJNR/L 1616H-11 TDN 322 SP 3 PN 3-4 LR 3D SR 117-2014 HW 2.5/5 DDJNR/L R-Clamp Toolholders with 93° Lead Angle for 55° Negative Rhombic Inserts 93° 27° max l2 h h f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert DDJNR/L 1616H-11 16.0 16.0 100.00 30.0 20.0 -7 -6 DNMG 1104 For inserts, see pages: DNMG-F3P (B54) • DNMG-M3P (B55) • DNMG-F3M (B55) • DNMG-M3M (B56) • DNMG-GN (B56) • DNMG-VL (B59) • DNMG-PF (B58) DNMG-NF (B57). Spare Parts Designation Seat Seat Screw Clamp Right-Left Screw Key Clamp Spring DDJNR/L 1616H-11 RDT 3-2 SR 40085I LCGR-3 SR RC3 KSP 3 A101 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
