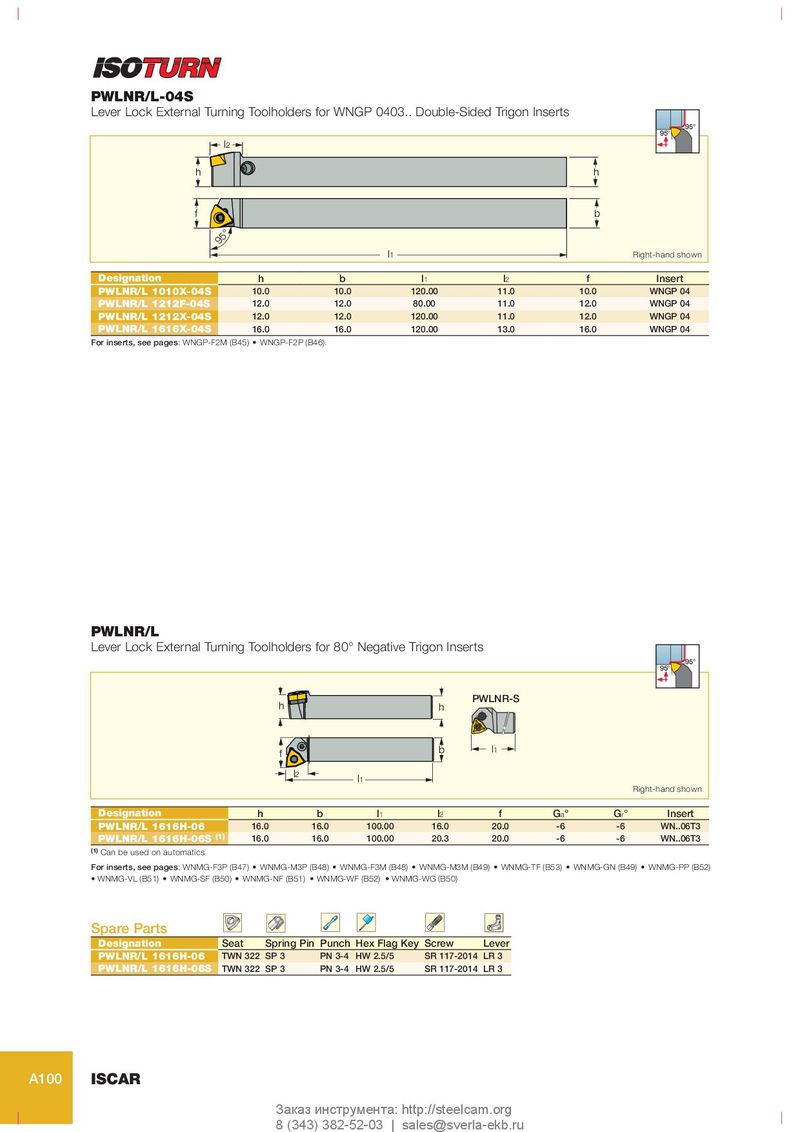

PWLNR/L-04S Lever Lock External Turning Toolholders for WNGP 0403.. Double-Sided Trigon Inserts 95° 95° l2 h h f b 95° l1 Right-hand shown Designation h b l 1 l 2 f Insert PWLNR/L 1010X-04S 10.0 10.0 120.00 11.0 10.0 WNGP 04 PWLNR/L 1212F-04S 12.0 12.0 80.00 11.0 12.0 WNGP 04 PWLNR/L 1212X-04S 12.0 12.0 120.00 11.0 12.0 WNGP 04 PWLNR/L 1616X-04S 16.0 16.0 120.00 13.0 16.0 WNGP 04 For inserts, see pages: WNGP-F2M (B45) • WNGP-F2P (B46). PWLNR/L Lever Lock External Turning Toolholders for 80° Negative Trigon Inserts 95° 95° PWLNR-S h h l1 f b l2 l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PWLNR/L 1616H-06 16.0 16.0 100.00 16.0 20.0 -6 -6 WN..06T3 PWLNR/L 1616H-06S (1) 16.0 16.0 100.00 20.3 20.0 -6 -6 WN..06T3 (1) Can be used on automatics For inserts, see pages: WNMG-F3P (B47) • WNMG-M3P (B48) • WNMG-F3M (B48) • WNMG-M3M (B49) • WNMG-TF (B53) • WNMG-GN (B49) • WNMG-PP (B52) • WNMG-VL (B51) • WNMG-SF (B50) • WNMG-NF (B51) • WNMG-WF (B52) • WNMG-WG (B50) Spare Parts Designation Seat Spring Pin Punch Hex Flag Key Screw Lever PWLNR/L 1616H-06 TWN 322 SP 3 PN 3-4 HW 2.5/5 SR 117-2014 LR 3 PWLNR/L 1616H-06S TWN 322 SP 3 PN 3-4 HW 2.5/5 SR 117-2014 LR 3 A100 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
