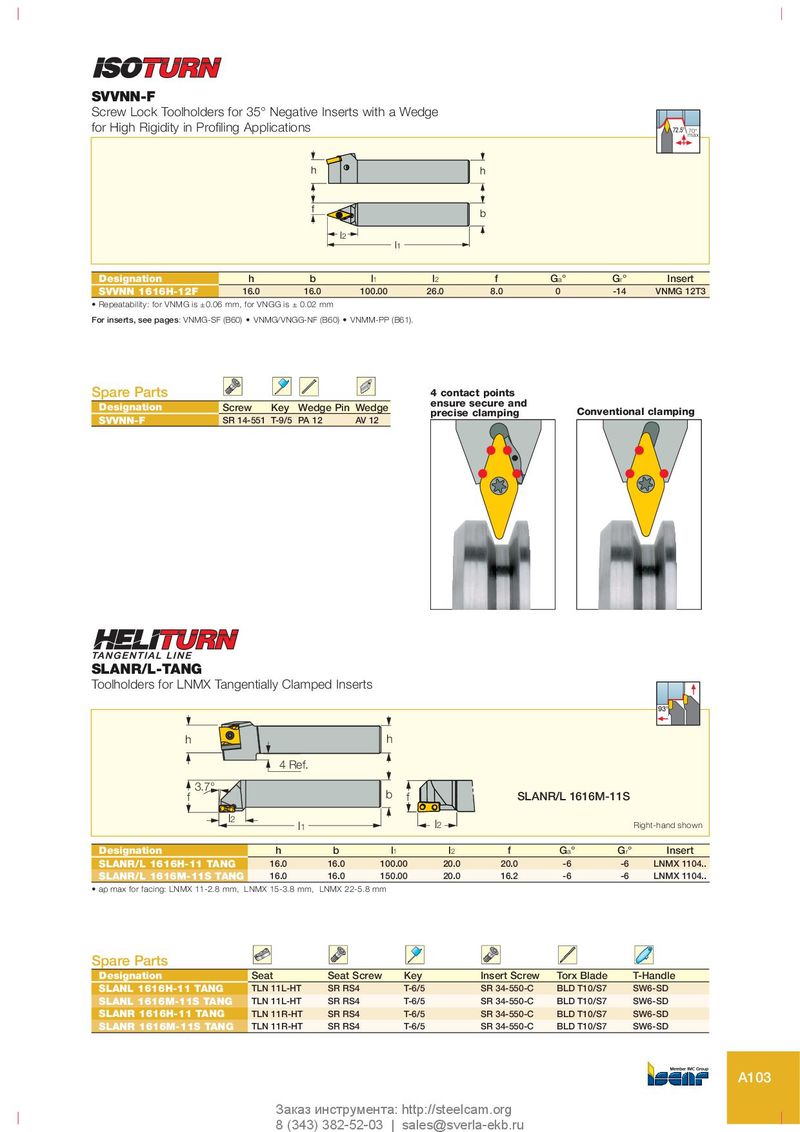

SVVNN-F Screw Lock Toolholders for 35° Negative Inserts with a Wedge for High Rigidity in Profiling Applications 72.5° 70° max h h f b l2 l1 Designation h b l 1 l 2 f G a ° G r ° Insert SVVNN 1616H-12F 16.0 16.0 100.00 26.0 8.0 0 -14 VNMG 12T3 • Repeatability: for VNMG is ±0.06 mm, for VNGG is ± 0.02 mm For inserts, see pages: VNMG-SF (B60) • VNMG/VNGG-NF (B60) • VNMM-PP (B61). Spare Parts 4 contact points ensure secure and Designation Screw Key Wedge Pin Wedge precise clamping Conventional clamping SVVNN-F SR 14-551 T-9/5 PA 12 AV 12 SLANR/L-TANG Toolholders for LNMX Tangentially Clamped Inserts 93° h h 4 Ref. 3.7° f b f SLANR/L 1616M-11S l 2 l 1 l2 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SLANR/L 1616H-11 TANG 16.0 16.0 100.00 20.0 20.0 -6 -6 LNMX 1104.. SLANR/L 1616M-11S TANG 16.0 16.0 150.00 20.0 16.2 -6 -6 LNMX 1104.. • ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm, LNMX 22-5.8 mm Spare Parts Designation Seat Seat Screw Key Insert Screw Torx Blade T-Handle SLANL 1616H-11 TANG TLN 11L-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANL 1616M-11S TANG TLN 11L-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANR 1616H-11 TANG TLN 11R-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANR 1616M-11S TANG TLN 11R-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD A103 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
