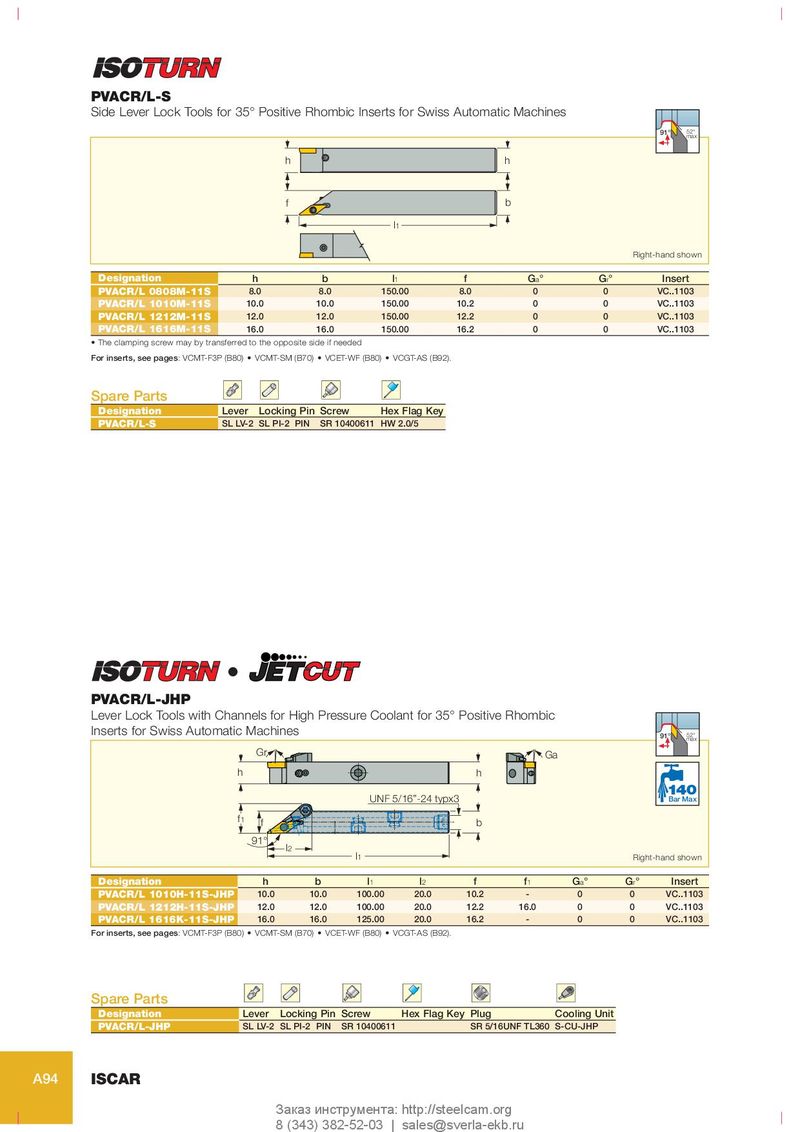

Каталог Iscar инструмент для мелкоразмерной обработки - страница 112

PVACR/L-S Side Lever Lock Tools for 35° Positive Rhombic Inserts for Swiss Automatic Machines 91° 52° max h h f b l 1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert PVACR/L 0808M-11S 8.0 8.0 150.00 8.0 0 0 VC..1103 PVACR/L 1010M-11S 10.0 10.0 150.00 10.2 0 0 VC..1103 PVACR/L 1212M-11S 12.0 12.0 150.00 12.2 0 0 VC..1103 PVACR/L 1616M-11S 16.0 16.0 150.00 16.2 0 0 VC..1103 • The clamping screw may by transferred to the opposite side if needed For inserts, see pages: VCMT-F3P (B80) • VCMT-SM (B70) • VCET-WF (B80) • VCGT-AS (B92). Spare Parts Designation Lever Locking Pin Screw Hex Flag Key PVACR/L-S SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 O   PVACR/L-JHP Lever Lock Tools with Channels for High Pressure Coolant for 35° Positive Rhombic Inserts for Swiss Automatic Machines 91° 52° max Gr Ga h h UNF 5/16”-24 typx3 Bar Max f1 f b 91° l2 l1 Right-hand shown Designation h b l 1 l 2 f f 1 G a ° G r ° Insert PVACR/L 1010H-11S-JHP 10.0 10.0 100.00 20.0 10.2 - 0 0 VC..1103 PVACR/L 1212H-11S-JHP 12.0 12.0 100.00 20.0 12.2 16.0 0 0 VC..1103 PVACR/L 1616K-11S-JHP 16.0 16.0 125.00 20.0 16.2 - 0 0 VC..1103 For inserts, see pages: VCMT-F3P (B80) • VCMT-SM (B70) • VCET-WF (B80) • VCGT-AS (B92). Spare Parts Designation Lever Locking Pin Screw Hex Flag Key Plug Cooling Unit PVACR/L-JHP SL LV-2 SL PI-2 PIN SR 10400611 SR 5/16UNF TL360 S-CU-JHP A94 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
