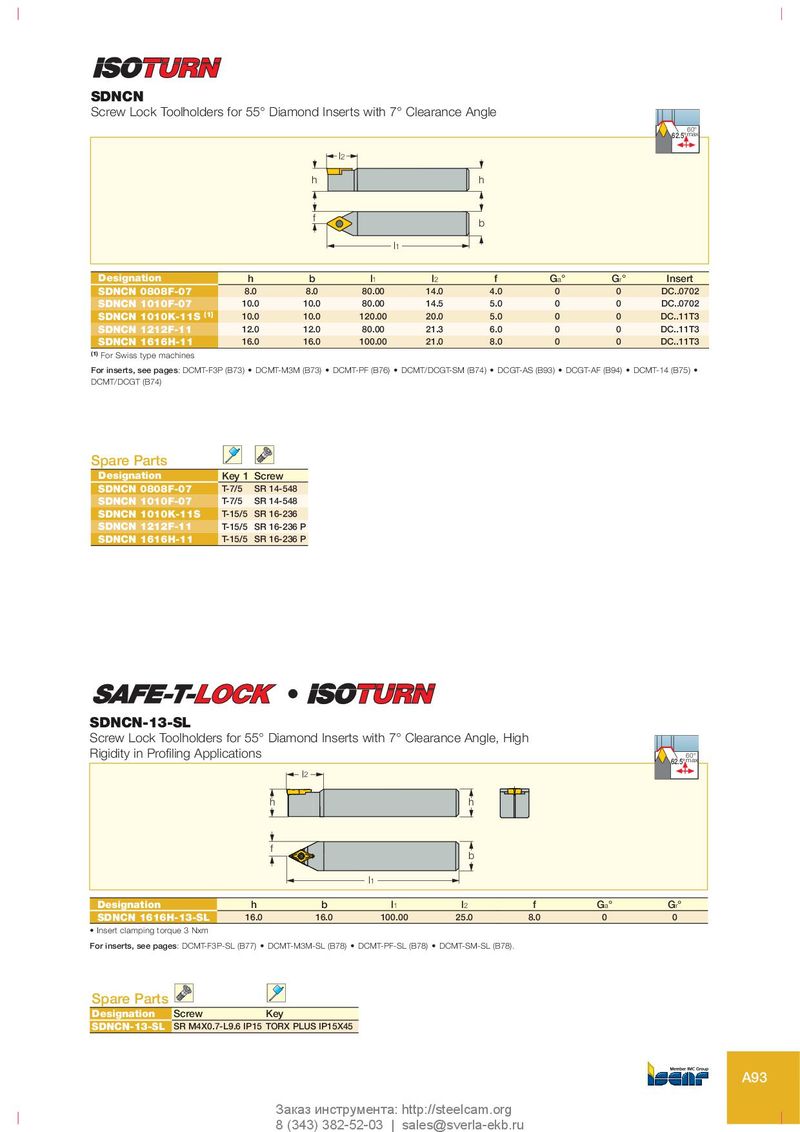

SDNCN Screw Lock Toolholders for 55° Diamond Inserts with 7° Clearance Angle 60° 62.5° max l 2 h h f b l 1 Designation h b l 1 l 2 f G a ° G r ° Insert SDNCN 0808F-07 8.0 8.0 80.00 14.0 4.0 0 0 DC..0702 SDNCN 1010F-07 10.0 10.0 80.00 14.5 5.0 0 0 DC..0702 SDNCN 1010K-11S (1) 10.0 10.0 120.00 20.0 5.0 0 0 DC..11T3 SDNCN 1212F-11 12.0 12.0 80.00 21.3 6.0 0 0 DC..11T3 SDNCN 1616H-11 16.0 16.0 100.00 21.0 8.0 0 0 DC..11T3 (1) For Swiss type machines For inserts, see pages: DCMT-F3P (B73) • DCMT-M3M (B73) • DCMT-PF (B76) • DCMT/DCGT-SM (B74) • DCGT-AS (B93) • DCGT-AF (B94) • DCMT-14 (B75) • DCMT/DCGT (B74) Spare Parts Designation Key 1 Screw SDNCN 0808F-07 T-7/5 SR 14-548 SDNCN 1010F-07 T-7/5 SR 14-548 SDNCN 1010K-11S T-15/5 SR 16-236 SDNCN 1212F-11 T-15/5 SR 16-236 P SDNCN 1616H-11 T-15/5 SR 16-236 P  O  SDNCN-13-SL Screw Lock Toolholders for 55° Diamond Inserts with 7° Clearance Angle, High Rigidity in Profiling Applications 60° 62.5° max l 2 h h f b l 1 Designation h b l 1 l 2 f G a ° G r ° SDNCN 1616H-13-SL 16.0 16.0 100.00 25.0 8.0 0 0 • Insert clamping torque 3 Nxm For inserts, see pages: DCMT-F3P-SL (B77) • DCMT-M3M-SL (B78) • DCMT-PF-SL (B78) • DCMT-SM-SL (B78). Spare Parts Designation Screw Key SDNCN-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 A93 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
