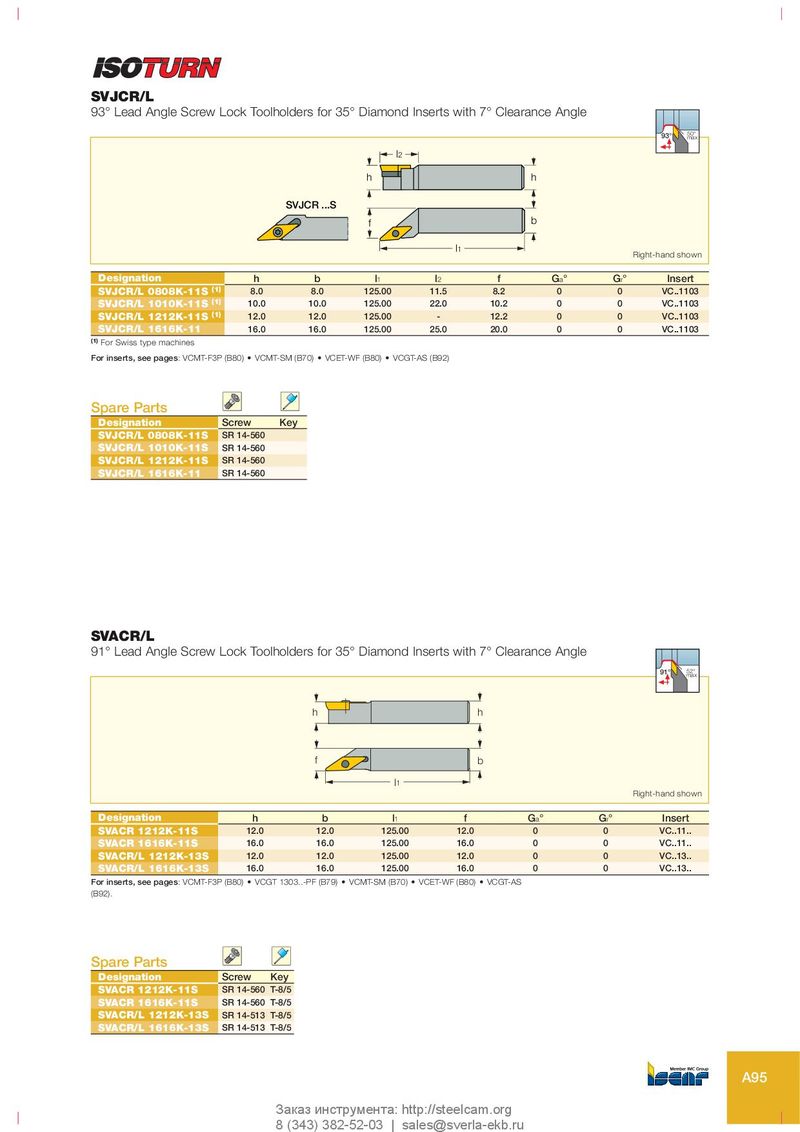

SVJCR/L 93° Lead Angle Screw Lock Toolholders for 35° Diamond Inserts with 7° Clearance Angle 93° 50° max l2 h h SVJCR ...S f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SVJCR/L 0808K-11S (1) 8.0 8.0 125.00 11.5 8.2 0 0 VC..1103 SVJCR/L 1010K-11S (1) 10.0 10.0 125.00 22.0 10.2 0 0 VC..1103 SVJCR/L 1212K-11S (1) 12.0 12.0 125.00 - 12.2 0 0 VC..1103 SVJCR/L 1616K-11 16.0 16.0 125.00 25.0 20.0 0 0 VC..1103 (1) For Swiss type machines For inserts, see pages: VCMT-F3P (B80) • VCMT-SM (B70) • VCET-WF (B80) • VCGT-AS (B92) Spare Parts Designation Screw Key SVJCR/L 0808K-11S SR 14-560 SVJCR/L 1010K-11S SR 14-560 SVJCR/L 1212K-11S SR 14-560 SVJCR/L 1616K-11 SR 14-560 SVACR/L 91° Lead Angle Screw Lock Toolholders for 35° Diamond Inserts with 7° Clearance Angle 91° 52° max h h f b l 1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert SVACR 1212K-11S 12.0 12.0 125.00 12.0 0 0 VC..11.. SVACR 1616K-11S 16.0 16.0 125.00 16.0 0 0 VC..11.. SVACR/L 1212K-13S 12.0 12.0 125.00 12.0 0 0 VC..13.. SVACR/L 1616K-13S 16.0 16.0 125.00 16.0 0 0 VC..13.. For inserts, see pages: VCMT-F3P (B80) • VCGT 1303..-PF (B79) • VCMT-SM (B70) • VCET-WF (B80) • VCGT-AS (B92). Spare Parts Designation Screw Key SVACR 1212K-11S SR 14-560 T-8/5 SVACR 1616K-11S SR 14-560 T-8/5 SVACR/L 1212K-13S SR 14-513 T-8/5 SVACR/L 1616K-13S SR 14-513 T-8/5 A95 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
