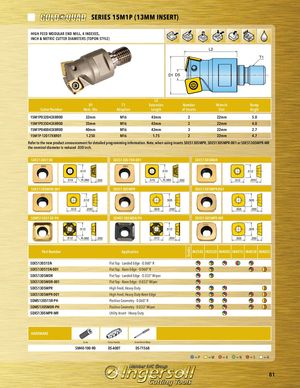

SERIES 15M1P (13MM INSERT) HIGH FEED MODULAR END MILL, 4 INDEXES, INCH & METRIC CUTTER DIAMETERS (TOPON STYLE) L2 T1 D1 D5 L2 D1 T1 Extension Number Wrench Ramp Cutter Number Nom. Dia. Adaption Length of Inserts Size Angle 15M1P032043X8R00 32mm M16 43mm 2 22mm 5.0 15M1P035043X8R00 35mm M16 43mm 2 22mm 4.0 15M1P040043X8R00 40mm M16 43mm 3 22mm 2.7 15M1P-12017X8R01 1.250 M16 1.75 2 22mm 4.7 Refer to the new product announcement for detailed programming information. Note, when using inserts SDES1305MPR, SDES1305MPR-001 or SDES1305MPR-MR the nominal diameter is reduced .030 inch. SDES130515N SDES130515N-001 SDES1305MDR .510 .510 .512 .510 R.060 .200 .510 R.060 .200 .512 .200 SDES1305MDR-001 SDES1305MPR SDES1305MPR-001 .512 .505 .505 .512 .200 .505 .200 .505 .200 SDMS130515R-PH SDMS1305MDR-PH SDXS1305MPR-MR .512 .512 .505 .512 R.060 .200 .512 .200 .505 .200 Part Number Application IN2505 IN2530 IN4005 IN4015 IN4030 IN4035 SDES130515N Flat Top - Landed Edge - 0.060“ R SDES130515N-001 Flat Top - Keen Edge - 0.060“ R SDES1305MDR Flat Top - Landed Edge - 0.033“ Wiper SDES1305MDR-001 Flat Top - Keen Edge - 0.033“ Wiper SDES1305MPR High Feed, Heavy-Duty SDES1305MPR-001 High Feed, Heavy-Duty Keen Edge SDMS130515R-PH Positive Geometry - 0.060“ R SDMS1305MDR-PH Positive Geometry - 0.033“ Wiper SDXS1305MPR-MR Utility Insert - Heavy Duty HARDWARE Screw Driver Handle Screw Driver Blade SM40-100-R0 DS-A00T DS-T156B =P =M =K =N =S =H 81 Grades
