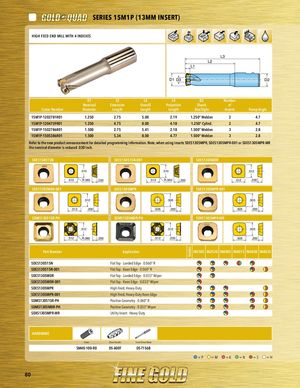

SERIES 15M1P (13MM INSERT) HIGH FEED END MILL WITH 4 INDEXES L3 L2 L1 D1 D3 D2 D1 L2 L3 L4 D2 Number Nominal Extension Overall Projection Shank of Cutter Number Diameter Length Length Length Size/Style Inserts Ramp Angle 15M1P-1202781R01 1.250 2.75 5.00 2.19 1.250“ Weldon 2 4.7 15M1P-12047S9R01 1.250 4.75 8.00 4.18 1.250“ Cylind. 2 4.7 15M1P-1502786R01 1.500 2.75 5.41 2.18 1.500“ Weldon 3 2.8 15M1P-1505386R01 1.500 5.34 8.00 4.77 1.500“ Weldon 3 2.8 Refer to the new product announcement for detailed programming information. Note, when using inserts SDES1305MPR, SDES1305MPR-001 or SDES1305MPR-MR the nominal diameter is reduced .030 inch. SDES130515N SDES130515N-001 SDES1305MDR .510 .510 .512 .510 R.060 .200 .510 R.060 .200 .512 .200 SDES1305MDR-001 SDES1305MPR SDES1305MPR-001 .512 .505 .505 .512 .200 .505 .200 .505 .200 SDMS130515R-PH SDMS1305MDR-PH SDXS1305MPR-MR .512 .512 .505 .512 R.060 .200 .512 .200 .505 .200 Part Number Application IN2505 IN2530 IN4005 IN4015 IN4030 IN4035 SDES130515N Flat Top - Landed Edge - 0.060“ R SDES130515N-001 Flat Top - Keen Edge - 0.060“ R SDES1305MDR Flat Top - Landed Edge - 0.033“ Wiper SDES1305MDR-001 Flat Top - Keen Edge - 0.033“ Wiper SDES1305MPR High Feed, Heavy-Duty SDES1305MPR-001 High Feed, Heavy-Duty Keen Edge SDMS130515R-PH Positive Geometry - 0.060“ R SDMS1305MDR-PH Positive Geometry - 0.033“ Wiper SDXS1305MPR-MR Utility Insert - Heavy Duty HARDWARE Screw Driver Handle Screw Driver Blade SM40-100-R0 DS-A00T DS-T156B =P =M =K =N =S =H 80 Grades
