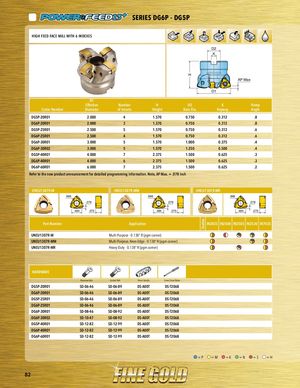

SERIES DG6P - DG5P HIGH FEED FACE MILL WITH 6 INDEXES D2 K H AP Max D1 D1 Effective Number H D2 K Ramp Cutter Number Diameter of Inserts Height Bore Dia. Keyway Angle DG5P-20R01 2.000 4 1.570 0.750 0.312 .8 DG6P-20R01 2.000 3 1.570 0.750 0.312 .8 DG5P-25R01 2.500 5 1.570 0.750 0.312 .6 DG6P-25R01 2.500 4 1.570 0.750 0.312 .6 DG6P-30R01 3.000 5 1.570 1.000 0.375 .4 DG6P-30R02 3.000 5 1.570 1.250 0.500 .4 DG5P-40R01 4.000 7 2.375 1.500 0.625 .3 DG6P-40R01 4.000 6 2.375 1.500 0.625 .3 DG6P-60R01 6.000 7 2.375 1.500 0.625 .2 Refer to the new product announcement for detailed programming information. Note, AP Max. = .078 inch UNEU1307R-M UNEU1307R-MM UNEU1307R-MR .866 .866 .866 .078 .078 .078 .484 .275 .484 .275 .484 .275 Part Number Application IN2035 IN2504 IN2505 IN2530 IN7035 UNEU1307R-M Multi-Purpose - 0.138“ R (pgm corner) UNEU1307R-MM Multi-Purpose, Keen Edge - 0.138“ R (pgm corner) UNEU1307R-MR Heavy-Duty - 0.138“ R (pgm corner) HARDWARE Retention Bolt Coolant Bolt Driver Handle Screw Driver Blade DG5P-20R01 SD-06-46 SD-06-89 DS-A00T DS-T206B DG6P-20R01 SD-06-46 SD-06-89 DS-A00T DS-T206B DG5P-25R01 SD-06-46 SD-06-89 DS-A00T DS-T206B DG6P-25R01 SD-06-46 SD-06-89 DS-A00T DS-T206B DG6P-30R01 SD-08-46 SD-08-92 DS-A00T DS-T206B DG6P-30R02 SD-10-47 SD-08-92 DS-A00T DS-T206B DG5P-40R01 SD-12-82 SD-12-99 DS-A00T DS-T206B DG6P-40R01 SD-12-82 SD-12-99 DS-A00T DS-T206B DG6P-60R01 SD-12-82 SD-12-99 DS-A00T DS-T206B =P =M =K =N =S =H 82 Grades
