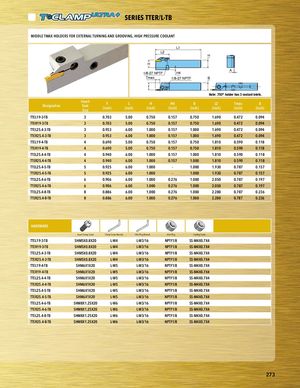

Общий каталог Ingersoll 2016 - 2017 - страница 275

PART SERIES SERIES TTER/L-TB PMAIRDTDSLERTIMESAX HOLDERS FOR EXTERNAL TURNING AND GROOVING, HIGH PRESSURE COOLANT L1 L2 H H 1/8-27 NPTF H4 A Tmax 1/8-27 NPTF B f Note: .750" holder has 3 coolant inlets. Designation InsertSeatSize F(inch) L(inch) H(inch) H4(inch) B(inch) L2(inch) Tmax(inch) A(inch) TTEL19-3-TB 3 0.703 5.00 0.750 0.157 0.750 1.690 0.472 0.094 PTlaTEcRe1h9o-3ld-TeBr 3 0.703 5.00 0.750 0.157 0.750 1.690 0.472 0.094 TTEL25.4-3-TB 3 0.953 6.00 1.000 0.157 1.000 1.690 0.472 0.094 TTER25.4-3-TB 3 0.953 6.00 1.000 0.157 1.000 1.690 0.472 0.094 TTEL19-4-TB 4 0.690 5.00 0.750 0.157 0.750 1.810 0.590 0.118 TTER19-4-TB 4 0.690 5.00 0.750 0.157 0.750 1.810 0.590 0.118 TTEL25.4-4-TB 4 0.940 6.00 1.000 0.157 1.000 1.810 0.590 0.118 TTER25.4-4-TB 4 0.940 6.00 1.000 0.157 1.000 1.810 0.590 0.118 TTEL25.4-5-TB 5 0.925 6.00 1.000 - 1.000 1.930 0.787 0.157 TTER25.4-5-TB 5 0.925 6.00 1.000 - 1.000 1.930 0.787 0.157 TTEL25.4-6-TB 6 0.906 6.00 1.000 0.276 1.000 2.050 0.787 0.197 TTER25.4-6-TB 6 0.906 6.00 1.000 0.276 1.000 2.050 0.787 0.197 TTEL25.4-8-TB 8 0.886 6.00 1.000 0.276 1.000 2.280 0.787 0.236 TTER25.4-8-TB 8 0.886 6.00 1.000 0.276 1.000 2.280 0.787 0.236 HARDWARE Insert Clamp Screw Clamp Screw Wrench Inlet Plug Wrench Inlet Plug Sealing Screw TTEL19-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER19-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTEL25.4-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER25.4-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTEL19-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER19-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTEL25.4-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER25.4-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTEL25.4-5-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER25.4-5-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTEL25.4-6-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER25.4-6-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTEL25.4-8-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4 TTER25.4-8-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4 HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 273
