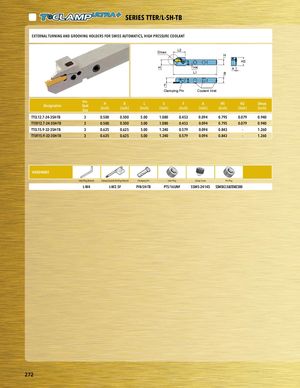

PART SERIES SERIES TTER/L-SH-TB PEXATRETRSNEARLIETSURNING AND GROOVING HOLDERS FOR SWISS AUTOMATICS, HIGH PRESSURE COOLANT Dmax L2 H H2 H H4 A L1 B F Clamping Pin Coolant Inlet Designation Ins.SeatSize H B L E F A H1 H2 Dmax(inch)(inch)(inch)(inch)(inch)(inch)(inch)(inch)(inch) TTEL12.7-24-3SH-TB 3 0.500 0.500 5.00 1.080 0.453 0.094 0.795 0.079 0.940 PTlaTEcRe1h2o.7ld-2e4r-3SH-TB 3 0.500 0.500 5.00 1.080 0.453 0.094 0.795 0.079 0.940 TTEL15.9-32-3SH-TB 3 0.625 0.625 5.00 1.240 0.579 0.094 0.843 - 1.260 TTER15.9-32-3SH-TB 3 0.625 0.625 5.00 1.240 0.579 0.094 0.843 - 1.260 HARDWARE Inlet Plug Wrench Clamp Screw & Pin Plug Wrench Clamping Pin Inlet Plug Clamp Screw Pin Plug L-W4 L-W2.5F PIN-SH-TB PT5/16UNF SSM5-24145 SSM5X3.5ULTEM2300 HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 272
