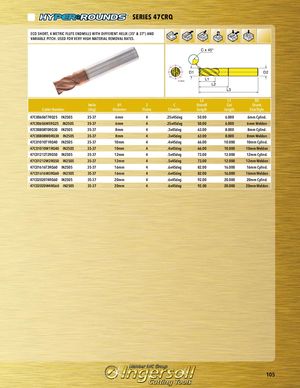

SERIES 47CRQ ECO SHORT, 4 METRIC FLUTE ENDMILLS WITH DIFFERENT HELIX (35° & 37°) AND VARIABLE PITCH. USED FOR VERY HIGH MATERIAL REMOVAL RATES. C x 45° D1 D2 L1 L2 L3 L3 L1 D2 Helix D1 Z C Overall Cut Shank Cutter Number (deg) Diameter Flutes Chamfer Length Length Size/Style 47C00606T7RQ25 IN2505 35-37 6mm 4 .25x45deg 50.00 6.000 6mm Cylind. 47C00606WERQ25 IN2505 35-37 6mm 4 .25x45deg 50.00 6.000 6mm Weldon 47C00808T0RQ30 IN2505 35-37 8mm 4 .3x45deg 63.00 8.000 8mm Cylind. 47C00808W0RQ30 IN2505 35-37 8mm 4 .3x45deg 63.00 8.000 8mm Weldon 47C01010T1RQ40 IN2505 35-37 10mm 4 .4x45deg 66.00 10.000 10mm Cylind. 47C01010W1RQ40 IN2505 35-37 10mm 4 .4x45deg 66.00 10.000 10mm Weldon 47C01212T2RQ50 IN2505 35-37 12mm 4 .5x45deg 73.00 12.000 12mm Cylind. 47C01212W2RQ50 IN2505 35-37 12mm 4 .5x45deg 73.00 12.000 12mm Weldon 47C01616T3RQ60 IN2505 35-37 16mm 4 .6x45deg 82.00 16.000 16mm Cylind. 47C01616W3RQ60 IN2505 35-37 16mm 4 .6x45deg 82.00 16.000 16mm Weldon 47C02020T4RQ60 IN2505 35-37 20mm 4 .6x45deg 92.00 20.000 20mm Cylind. 47C02020W4RQ60 IN2505 35-37 20mm 4 .6x45deg 92.00 20.000 20mm Weldon 105
