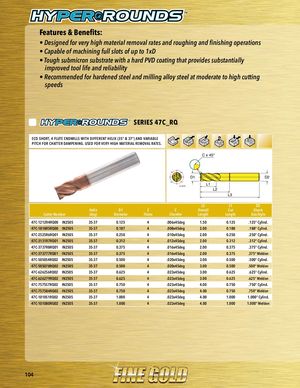

Features & Benefits: • Designed for very high material removal rates and roughing and finishing operations • Capable of machining full slots of up to 1xD • Tough submicron substrate with a hard PVD coating that provides substantially improved tool life and reliability • Recommended for hardened steel and milling alloy steel at moderate to high cutting speeds SERIES 47C_RQ ECO SHORT, 4 FLUTE ENDMILLS WITH DIFFERENT HELIX (35° & 37°) AND VARIABLE PITCH FOR CHATTER DAMPENING. USED FOR VERY HIGH MATERIAL REMOVAL RATES. C x 45° D1 D2 L1 L2 L3 L3 L1 D2 Helix D1 Z C Overall Cut Shank Cutter Number (deg) Diameter Flutes Chamfer Length Length Size/Style 47C-1212R4RQ00 IN2505 35-37 0.125 4 .006x45deg 1.50 0.125 .125“ Cylind. 47C-1818R5RQ00 IN2505 35-37 0.187 4 .008x45deg 2.00 0.188 .188“ Cylind. 47C-2525R6RQ01 IN2505 35-37 0.250 4 .010x45deg 2.00 0.250 .250“ Cylind. 47C-3131R7RQ01 IN2505 35-37 0.312 4 .012x45deg 2.00 0.312 .312“ Cylind. 47C-3737R8RQ01 IN2505 35-37 0.375 4 .016x45deg 2.00 0.375 .375“ Cylind. 47C-373777RQ01 IN2505 35-37 0.375 4 .016x45deg 2.00 0.375 .375“ Weldon 47C-5050S4RQ02 IN2505 35-37 0.500 4 .020x45deg 3.00 0.500 .500“ Cylind. 47C-505078RQ02 IN2505 35-37 0.500 4 .020x45deg 3.00 0.500 .500“ Weldon 47C-6262S6RQ02 IN2505 35-37 0.625 4 .023x45deg 3.00 0.625 .625“ Cylind. 47C-626279RQ02 IN2505 35-37 0.625 4 .023x45deg 3.00 0.625 .625“ Weldon 47C-7575S7RQ02 IN2505 35-37 0.750 4 .023x45deg 4.00 0.750 .750“ Cylind. 47C-757584RQ02 IN2505 35-37 0.750 4 .023x45deg 4.00 0.750 .750“ Weldon 47C-1010S1RQ02 IN2505 35-37 1.000 4 .023x45deg 4.00 1.000 1.000“ Cylind. 47C-101080RQ02 IN2505 35-37 1.000 4 .023x45deg 4.00 1.000 1.000“ Weldon 104
