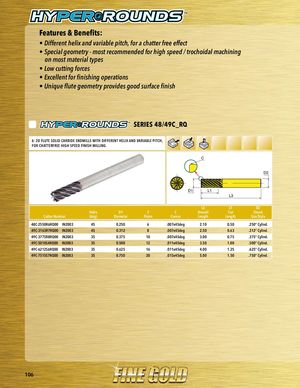

Features & Benefits: • Different helix and variable pitch, for a chatter free effect • Special geometry - most recommended for high speed / trochoidal machining on most material types • Low cutting forces • Excellent for finishing operations • Unique flute geometry provides good surface finish SERIES 48/49C_RQ 6- 20 FLUTE SOLID CARBIDE ENDMILLS WITH DIFFERENT HELIX AND VARIABLE PITCH, FOR CHATTERFREE HIGH SPEED FINISH MILLING C D2 D1 L1 L3 L3 L1 D2 Helix D1 Z C Overall Cut Shank Cutter Number (deg) Diameter Flutes Corner Length Length Size/Style 48C-2550R6RQ00 IN2003 45 0.250 6 .007x45deg 2.10 0.50 .250“ Cylind. 49C-3163R7RQ00 IN2003 45 0.312 8 .007x45deg 2.50 0.63 .312“ Cylind. 49C-3775R8RQ00 IN2003 35 0.375 10 .007x45deg 3.00 0.75 .375“ Cylind. 49C-5010S4RQ00 IN2003 35 0.500 12 .011x45deg 3.50 1.00 .500“ Cylind. 49C-6212S6RQ00 IN2003 35 0.625 16 .011x45deg 4.00 1.25 .625“ Cylind. 49C-7515S7RQ00 IN2003 35 0.750 20 .015x45deg 5.00 1.50 .750“ Cylind. 106
