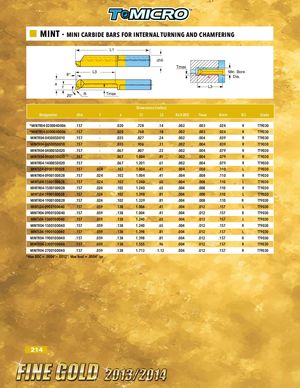

MINT - MINI CARBIDE BARS FOR INTERNAL TURNING AND CHAMFERING L1 dh6 Tmax 8° L3 Min. BoreDia. a f L3 20° R Tmax Dimensions (inches) Designation dh6 f a L1 L3 R±0.002 Tmax Dmin R/L Grade *MINTR04-020004D006 .157 - .020 .728 .14 .002 .003 .024 R TT9030 *MINTR04-030004D006 .157 - .020 .768 .18 .002 .003 .024 R TT9030 MINTR04-045005D010 .157 - .035 .827 .24 .002 .004 .039 R TT9030 MINTR04-065005D010 .157 - .035 .906 .31 .002 .004 .039 R TT9030 MINTR04-040005D020 .157 - .067 .807 .22 .002 .004 .079 R TT9030 MINTR04-090005D020 .157 - .067 1.004 .41 .002 .004 .079 R TT9030 MINTR04-140005D020 .157 - .067 1.201 .61 .002 .004 .079 R TT9030 MINTL04-090010D028 .157 .024 .102 1.004 .41 .004 .008 .110 L TT9030 MINTR04-090010D028 .157 .024 .102 1.004 .41 .004 .008 .110 R TT9030 MINTL04-150010D028 .157 .024 .102 1.240 .65 .004 .008 .110 L TT9030 MINTR04-150010D028 .157 .024 .102 1.240 .65 .004 .008 .110 R TT9030 MINTL04-190010D028 .157 .024 .102 1.398 .81 .004 .008 .110 L TT9030 MINTR04-190010D028 .157 .024 .102 1.339 .81 .004 .008 .110 R TT9030 MINTL04-090010D040 .157 .059 .138 1.004 .41 .004 .012 .157 L TT9030 MINTR04-090010D040 .157 .059 .138 1.004 .41 .004 .012 .157 R TT9030 MINTL04-150010D040 .157 .059 .138 1.240 .65 .004 .012 .157 L TT9030 MINTR04-150010D040 .157 .059 .138 1.240 .65 .004 .012 .157 R TT9030 MINTL04-190010D040 .157 .059 .138 1.398 .81 .004 .012 .157 L TT9030 MINTR04-190010D040 .157 .059 .138 1.398 .81 .004 .012 .157 R TT9030 MINTR04-230010D040 .157 .059 .138 1.555 .96 .004 .012 .157 R TT9030 MINTR04-270010D040 .157 .059 .138 1.713 1.12 .004 .012 .157 R TT9030 *Max DOC = .0004”~.0012”, Max feed = .0004” ipr 214
