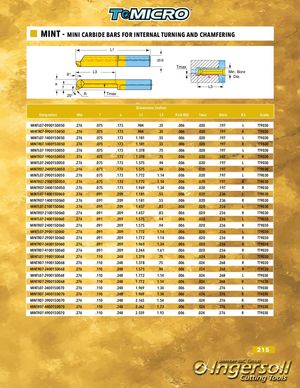

MINT - MINI CARBIDE BARS FOR INTERNAL TURNING AND CHAMFERING L1 dh6 Tmax 8° L3 Min. BoreDia. a f L3 20° R Tmax Dimensions (inches) Designation dh6 f a L1 L3 R±0.002 Tmax Dmin R/L Grade MINTL07-090015D050 .276 .075 .173 .984 .35 .006 .020 .197 L TT9030 MINTR07-090015D050 .276 .075 .173 .984 .35 .006 .020 .197 R TT9030 MINTL07-140015D050 .276 .075 .173 1.181 .55 .006 .020 .197 L TT9030 MINTR07-140015D050 .276 .075 .173 1.181 .55 .006 .020 .197 R TT9030 MINTL07-190015D050 .276 .075 .173 1.378 .75 .006 .020 .197 L TT9030 MINTR07-190015D050 .276 .075 .173 1.378 .75 .006 .020 .197 R TT9030 MINTL07-240015D050 .276 .075 .173 1.575 .94 .006 .020 .197 L TT9030 MINTR07-240015D050 .276 .075 .173 1.575 .94 .006 .020 .197 R TT9030 MINTL07-290015D050 .276 .075 .173 1.772 1.14 .006 .020 .197 L TT9030 MINTR07-290015D050 .276 .075 .173 1.772 1.14 .006 .020 .197 R TT9030 MINTR07-340015D050 .276 .075 .173 1.969 1.34 .006 .020 .197 R TT9030 MINTL07-140015D060 .276 .091 .209 1.181 .55 .006 .020 .236 L TT9030 MINTR07-140015D060 .276 .091 .209 1.181 .55 .006 .020 .236 R TT9030 MINTL07-210015D060 .276 .091 .209 1.457 .83 .006 .020 .236 L TT9030 MINTR07-210015D060 .276 .091 .209 1.457 .83 .006 .020 .236 R TT9030 MINTL07-240015D060 .276 .091 .209 1.575 .94 .006 .020 .236 L TT9030 MINTR07-240015D060 .276 .091 .209 1.575 .94 .006 .020 .236 R TT9030 MINTL07-290015D060 .276 .091 .209 1.772 1.14 .006 .020 .236 L TT9030 MINTR07-290015D060 .276 .091 .209 1.772 1.14 .006 .020 .236 R TT9030 MINTR07-340015D060 .276 .091 .209 1.969 1.34 .006 .020 .236 R TT9030 MINTR07-410015D060 .276 .091 .209 2.244 1.61 .006 .020 .236 R TT9030 MINTL07-190015D068 .276 .110 .248 1.378 .75 .006 .024 .268 L TT9030 MINTR07-190015D068 .276 .110 .248 1.378 .75 .006 .024 .268 R TT9030 MINTR07-240015D068 .276 .110 .248 1.575 .94 .006 .024 .268 R TT9030 MINTL07-290015D068 .276 .110 .248 1.772 1.14 .006 .024 .268 L TT9030 MINTR07-290015D068 .276 .110 .248 1.772 1.14 .006 .024 .268 R TT9030 MINTL07-340015D070 .276 .110 .248 1.969 1.34 .006 .024 .276 L TT9030 MINTR07-340015D070 .276 .110 .248 1.969 1.34 .006 .024 .276 R TT9030 MINTR07-390015D070 .276 .110 .248 2.165 1.54 .006 .024 .276 R TT9030 MINTR07-440015D070 .276 .110 .248 2.362 1.73 .006 .024 .276 R TT9030 MINTR07-490015D070 .276 .110 .248 2.559 1.93 .006 .024 .276 R TT9030 215
