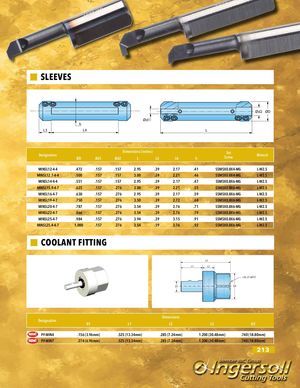

SLEEVES Ød2 ØD Ød1 h L3 L4 L Dimensions (inches)DesignationØDØd1Ød2LL3L4 h SetScrew Wrench MINSL12-4-4 .472 .157 .157 2.95 .39 2.17 .41 SSM5X0.8X4-MG L-W2.5 MINSL12.7-4-4 .500 .157 .157 3.00 .39 2.21 .46 SSM5X0.8X4-MG L-W2.5 MINSL14-4-4 .551 .157 .157 2.95 .39 2.17 .47 SSM5X0.8X6-MG L-W2.5 MINSL15.9-4-7 .625 .157 .276 3.00 .39 2.21 .55 SSM5X0.8X6-MG L-W2.5 MINSL16-4-7 .630 .157 .276 2.95 .39 2.17 .59 SSM5X0.8X6-MG L-W2.5 MINSL19-4-7 .750 .157 .276 3.50 .39 2.72 .68 SSM5X0.8X6-MG L-W2.5 MINSL20-4-7 .787 .157 .276 3.54 .39 2.76 .71 SSM5X0.8X6-MG L-W2.5 MINSL22-4-7 .866 .157 .276 3.54 .39 2.76 .79 SSM5X0.8X6-MG L-W2.5 MINSL25-4-7 .984 .157 .276 3.94 .39 3.15 .91 SSM5X0.8X6-MG L-W2.5 MINSL25.4-4-7 1.000 .157 .276 3.54 .39 2.76 .92 SSM5X0.8X6-MG L-W2.5 COOLANT FITTING L3 L1 L2 1/8-27 NPTF D1 D2 Dimensions Designation D1 L1 L2 L3 D2 PF-MIN4 .156 (3.96mm) .525 (13.34mm) .285 (7.24mm) 1.200 (30.48mm) .740 (18.80mm) PF-MIN7 .274 (6.96mm) .525 (13.34mm) .285 (7.24mm) 1.200 (30.48mm) .740 (18.80mm) 213
