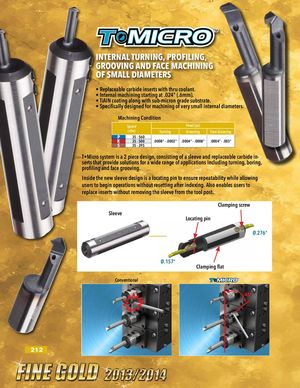

INTERNAL TURNING, PROFILING, GROOVING AND FACE MACHINING OF SMALL DIAMETERS • Replaceable carbide inserts with thru coolant. • Internal machining starting at .024" (.6mm). • TiAIN coating along with sub-micron grade substrate. • Specifically designed for machining of very small internal diameters. ■ Machining Condition Speed Feed (ipr) (sfm) Turning Grooving Face Grooving P 35 - 560 K 35 - 500 .0008" - .0002" .0004" - .0008" .0004" - .003" S 35 - 395 T•Micro system is a 2 piece design, consisting of a sleeve and replaceable carbide in- serts that provide solutions for a wide range of applications including turning, boring, profiling and face grooving. Inside the new sleeve design is a locating pin to ensure repeatability while allowing users to begin operations without resetting after indexing. Also enables users to replace inserts without removing the sleeve from the tool post. Clamping screw Sleeve Locating pin Ø.276" Ø.157" Clamping flat Conventional 45° 212
