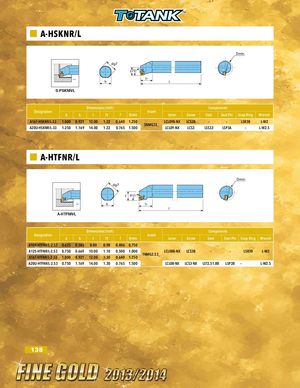

A-HSKNR/L Dmin. dg7 f 75° l1 h l S-PSKNR/L Dimensions (inch) Components Designation Insert d h l l1 f Dmin Lever Screw Seat Seat Pin Snap Ring Wrench A16T-HSKNR/L-33 1.000 0.921 12.00 1.22 0.640 1.250 LCL09B-NX LCS3B – – LSR3B L-W2 SNMG33_ A20U-HSKNR/L-33 1.250 1.169 14.00 1.22 0.765 1.500 LCL09-NX LCS3 LSS32 LSP3A – L-W2.5 A-HTFNR/L Dmin. dg7 f 91° h l1 l A-HTFNR/L Dimensions (inch) Components Designation Insert d h l l1 f Dmin Lever Screw Seat Seat Pin Snap Ring Wrench A10R-HTFNR/L-2.53 0.625 0.583 8.00 0.98 0.406 0.750 A12S-HTFNR/L-2.53 0.750 0.669 10.00 1.10 0.500 1.000 LCL08B-NX LCS3B – – LSR3B L-W2 TNMG2.53_ A16T-HTFNR/L-2.53 1.000 0.921 12.00 1.30 0.640 1.250 A20U-HTFNR/L-2.53 0.750 1.169 14.00 1.30 0.765 1.500 LCL08-NX LCS3-NX LST2.51.8B LSP3B – L-W2.5 138
