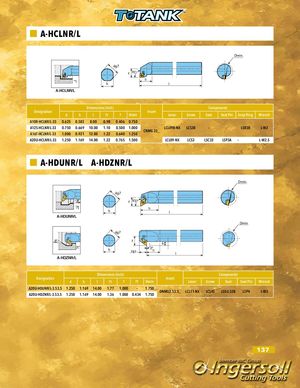

A-HCLNR/L Dmin. dg7 f 95° l1 h l A-HCLNR/L Dimensions (inch) Components Designation Insert d h l l1 f Dmin Lever Screw Seat Seat Pin Snap Ring Wrench A10R-HCLNR/L-33 0.625 0.583 8.00 0.98 0.406 0.750 A12S-HCLNR/L-33 0.750 0.669 10.00 1.10 0.500 1.000 LCL09B-NX LCS3B – – LSR3B L-W2 CNMG 33_ A16T-HCLNR/L-33 1.000 0.921 12.00 1.22 0.640 1.250 A20U-HCLNR/L-33 1.250 1.169 14.00 1.22 0.765 1.500 LCL09-NX LCS3 LSC32 LSP3A – L-W2.5 A-HDUNR/L A-HDZNR/L Dmin. dg7 f 93° l1 h l A-HDUNR/L Dmin. dg7 f f1 h .787 3°l1 l A-HDZNR/L Dimensions (inch) Components Designation Insert d h l l1 f f1 Dmin Lever Screw Seat Seat Pin Wrench A20U-HDUNR/L-3.53.5 1.250 1.169 14.00 1.77 1.000 – 1.750 DNMG3.53.5_ LCL11-NX LCS4S LSD3.52B LSP4 L-W3 A20U-HDZNR/L-3.53.5 1.250 1.169 14.00 1.36 1.000 0.434 1.750 137
