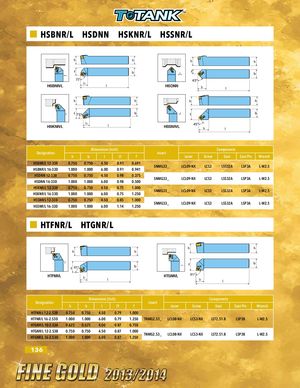

HSBNR/L HSDNN HSKNR/L HSSNR/L h h h h f b f b 75° 45° HSBNR/L l1 l HSDNN l1 l h h h h f 75° b f b HSKNR/L l1 l HSSNR/L 45° l1 l Dimensions (inch) Components Designation Insert h b l l1 f Lever Screw Seat Seat Pin Wrench HSBNR/L 12-33B 0.750 0.750 4.50 0.91 0.691 SNMG33_ LCL09-NX LCS3 LSS32A LSP3A L-W2.5 HSBNR/L 16-33D 1.000 1.000 6.00 0.91 0.941 HSDNN 12-33B 0.750 0.750 4.50 0.98 0.375 SNMG33_ LCL09-NX LCS3 LSS32A LSP3A L-W2.5 HSDNN 16-33D 1.000 1.000 6.00 0.98 0.500 HSKNR/L 12-33B 0.750 0.750 4.50 0.75 1.000 SNMG33_ LCL09-NX LCS3 LSS32A LSP3A L-W2.5 HSKNR/L 16-33D 1.000 1.000 6.00 0.75 1.250 HSSNR/L 12-33B 0.750 0.750 4.50 0.85 1.000 SNMG33_ LCL09-NX LCS3 LSS32A LSP3A L-W2.5 HSSNR/L 16-33D 1.000 1.000 6.00 1.14 1.250 HTFNR/L HTGNR/L h h h h f 91° b f b HTFNR/L l1 l HTGNR/L 91° l1 l Dimensions (inch) Components Designation Insert h b l l1 f Lever Screw Seat Seat Pin Wrench HTFNR/L 12-2.53B 0.750 0.750 4.50 0.79 1.000 HTFNR/L 16-2.53D 1.000 1.000 6.00 0.79 1.250 TNMG2.53_ LCL08-NX LCS3-NX LST2.51.8 LSP3B L-W2.5 HTGNR/L 10-2.53A 0.625 0.625 4.00 0.87 0.750 HTGNR/L 12-2.53B 0.750 0.750 4.50 0.87 1.000 TNMG2.53_ LCL08-NX LCS3-NX LST2.51.8 LSP3B L-W2.5 HTGNR/L 16-2.53D 1.000 1.000 6.00 0.87 1.250 136
