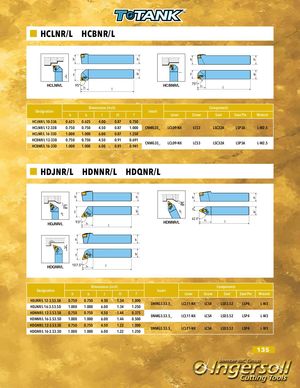

HCLNR/L HCBNR/L h h h h f b f b HCLNR/L 95° l1 l HCBNR/L 75° l1 l Dimensions (inch) Components Designation Insert h b l l1 f Lever Screw Seat Seat Pin Wrench HCLNR/L 10-33A 0.625 0.625 4.00 0.87 0.750 HCLNR/L 12-33B 0.750 0.750 4.50 0.87 1.000 CNMG33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 HCLNR/L 16-33D 1.000 1.000 6.00 0.87 1.250 HCBNR/L 12-33B 0.750 0.750 4.50 0.91 0.691 CNMG33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 HCBNR/L 16-33D 1.000 1.000 6.00 0.91 0.941 HDJNR/L HDNNR/L HDQNR/L h h h h f b f b HDJNR/L 93° l1 l HDNNR/L 62.5° l1 l h h f b HDQNR/L 107.5° l1 l Dimensions (inch) Components Designation Insert h b l l1 f Lever Screw Seat Seat Pin Wrench HDJNR/L 12-3.53.5B 0.750 0.750 4.50 1.34 1.000 DNMG3.53.5_ LCL11-NX LCS4 LSD3.52 LSP4 L-W3 HDJNR/L 16-3.53.5D 1.000 1.000 6.00 1.34 1.250 HDNNR/L 12-3.53.5B 0.750 0.750 4.50 1.44 0.375 DNMG3.53.5_ LCL11-NX LCS4 LSD3.52 LSP4 L-W3 HDNNR/L 16-3.53.5D 1.000 1.000 6.00 1.44 0.500 HDQNR/L 12-3.53.5B 0.750 0.750 4.50 1.22 1.000 DNMG3.53.5_ LCL11-NX LCS4 LSD3.52 LSP4 L-W3 HDQNR/L 16-3.53.5D 1.000 1.000 6.00 1.22 1.250 135
