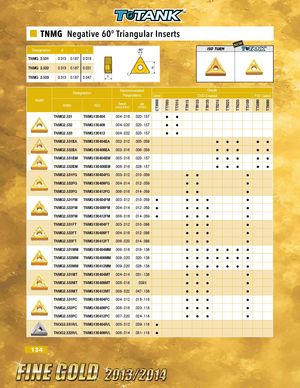

Общий каталог Ingersoll 2013 - 2014 - страница 134

CT3000 TT7005 TT7015 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 TT5080 TT9080 TNMG Negative 60° Triangular Inserts Designation d t r 60° TNMG 2.531 0.313 0.187 0.016 TNMG 2.532 0.313 0.187 0.031 d TNMG 2.533 0.313 0.187 0.047 t r Designation RecommendedParameters Cermet GradeCVD Coated PVD Coated Insert ANSI ISO (mfmee/rdev) (mapm) TNMG2.531 TNMG130404 .004-.018 .020-.157   TNMG2.532 TNMG130408 .004-.020 .020-.157   TNMG2.533 TNMG130412 .004-.022 .020-.157   TNMG2.531EA TNMG130404EA .002-.012 .005-.059      TNMG2.532EA TNMG130408EA .003-.016 .006-.059      TNMG2.531EM TNMG130404EM .005-.016 .020-.157      TNMG2.532EM TNMG130408EM .006-.016 .028-.157      TNMG2.531FG TNMG130404FG .003-.012 .010-.059    TNMG2.532FG TNMG130408FG .004-.014 .012-.059    TNMG2.533FG TNMG130412FG .006-.016 .014-.059    TNMG2.531FM TNMG130404FM .003-.012 .010-.059      TNMG2.532FM TNMG130408FM .004-.014 .012-.059      TNMG2.533FM TNMG130412FM .006-.016 .014-.059      TNMG2.531FT TNMG130404FT .003-.012 .010-.098     TNMG2.532FT TNMG130408FT .004-.016 .012-.098     TNMG2.533FT TNMG130412FT .006-,020 .014-.098     TNMG2.531MM TNMG130404MM .006-.018 .016-.138        TNMG2.532MM TNMG130408MM .008-,020 .020-.138        TNMG2.533MM TNMG130412MM .009-,020 .028-.138        TNMG2.531MT TNMG130404MT .004-.014 .031-.138     TNMG2.532MT TNMG130408MT .006-.018 .039X     TNMG2.533MT TNMG130412MT .008-.022 .047-.138     TNMG2.531PC TNMG130404PC .004-.012 .016-.118     TNMG2.532PC TNMG130408PC .006-.016 .020-.118     TNMG2.533PC TNMG130412PC .007-,020 .024-.118     TNGG2.531R/L TNMG130404R/L .005-.012 .039-.118  TNGG2.532R/L TNMG130408R/L .006-.014 .051-.118  134
