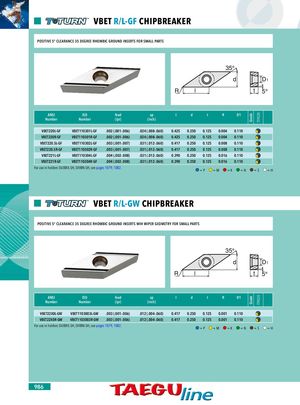

GradeGrade TT9020TT9020 VBET R/L-GF CHIPBREAKER POSITIVE 5° CLEARANCE 35 DEGREE RHOMBIC GROUND INSERTS FOR SMALL PARTS 35° d D1 R l t 5° ANASNISI ISIOSO fefeeded apap ll dd tt RR D1D1 NuNmumbebrer NuNmumbebrer (ip(irp)r) (in(icnhc)h) VBET220L-GF VBET110301L-GF .002 (.001-.006) .024 (.008-.060) 0.425 0.250 0.125 0.004 0.110 VBET220R-GF VBET110301R-GF .002 (.001-.006) .024 (.008-.060) 0.425 0.250 0.125 0.004 0.110 VBET220.5L-GF VBET110302L-GF .003 (.001-.007) .031 (.012-.060) 0.417 0.250 0.125 0.008 0.110 VBET220.5R-GF VBET110302R-GF .003 (.001-.007) .031 (.012-.060) 0.417 0.250 0.125 0.008 0.110 VBET221L-GF VBET110304L-GF .004 (.002-.008) .031 (.012-.060) 0.390 0.250 0.125 0.016 0.110 VBET221R-GF VBET110304R-GF .004 (.002-.008) .031 (.012-.060) 0.390 0.250 0.125 0.016 0.110 For use in holders SVJBR/L-SH, SVVBN-SH, see pages 1079, 1082. =P =M =K =N =S =H VBET R/L-GW CHIPBREAKER POSITIVE 5° CLEARANCE 35 DEGREE RHOMBIC GROUND INSERTS WIH WIPER GEOMETRY FOR SMALL PARTS 35° d D1 R l t 5° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) VBET22X0L-GW VBET1103003L-GW .003 (.001-.006) .012 (.004-.060) 0.417 0.250 0.125 0.001 0.110 VBET22X0R-GW VBET1103003R-GW .003 (.001-.006) .012 (.004-.060) 0.417 0.250 0.125 0.001 0.110 For use in holders SVJBR/L-SH, SVVBN-SH, see pages 1079, 1082. =P =M =K =N =S =H 986
