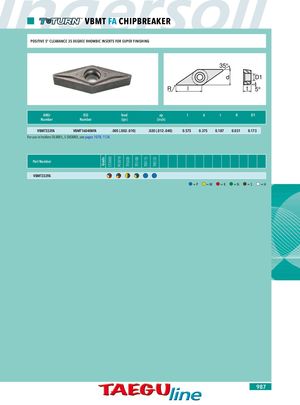

Grade CT3000 PV3010 TT5030 TT5100 TT8115 TT8125 VBMT FA CHIPBREAKER POSITIVE 5° CLEARANCE 35 DEGREE RHOMBIC INSERTS FOR SUPER FINISHING 35° d D1 R l t 5° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) VBMT332FA VBMT160408FA .005 (.002-.010) .020 (.012-.040) 0.575 0.375 0.187 0.031 0.173 For use in holders SVJBR/L, S-SVQBR/L, see pages 1078, 1134. Part Number VBMT332FA =P =M =K =N =S =H 987
