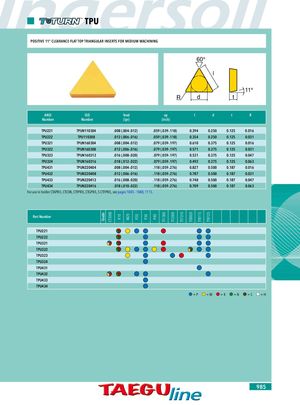

TPU POSITIVE 11° CLEARANCE FLAT TOP TRIANGULAR INSERTS FOR MEDIUM MACHINING 60° l 11° R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TPU221 TPUN110304 .008 (.004-.012) .059 (.039-.118) 0.394 0.250 0.125 0.016 TPU222 TPU110308 .012 (.006-.016) .059 (.039-.118) 0.354 0.250 0.125 0.031 TPU321 TPUN160304 .008 (.004-.012) .079 (.039-.197) 0.610 0.375 0.125 0.016 TPU322 TPUN160308 .012 (.006-.016) .079 (.039-.197) 0.571 0.375 0.125 0.031 TPU323 TPUN160312 .016 (.008-.020) .079 (.059-.197) 0.531 0.375 0.125 0.047 TPU324 TPUN160316 .018 (.012-.022) .079 (.059-.197) 0.492 0.375 0.125 0.063 TPU431 TPUN220404 .008 (.004-.012) .118 (.059-.276) 0.827 0.500 0.187 0.016 TPU432 TPUN220408 .012 (.006-.016) .118 (.059-.276) 0.787 0.500 0.187 0.031 TPU433 TPUN220412 .016 (.008-.020) .118 (.059-.276) 0.748 0.500 0.187 0.047 TPU434 TPUN220416 .018 (.010-.022) .118 (.059-.276) 0.709 0.500 0.187 0.063 For use in holder CTAPR/L, CTCON, CTFPR/L, CTGPR/L, S-CTFPR/L, see pages 1045 - 1048, 1115. Part Number TPU221 TPU222 TPU321 TPU322 TPU323 TPU324 TPU431 TPU432 TPU433 TPU434 =P =M =K =N =S =H 985 Grade CT3000 K10 M20 P20 P30 P40 TT1300 TT3500 TT7310 TT8020 TT8115 TT8125
