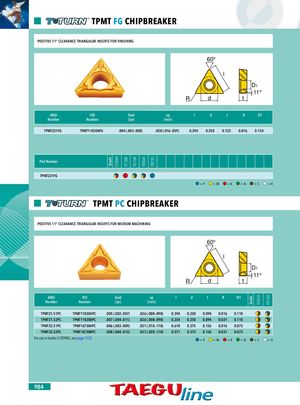

Grade CT3000 TT1300 TT5100 TT8020 TT8125 Grade TT5030 TT5100 TPMT FG CHIPBREAKER POSITIVE 11° CLEARANCE TRIANGULAR INSERTS FOR FINISHING 60° l D1 11° R d t ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) TPMT221FG TPMT110304FG .004 (.003-.008) .028 (.016-.059) 0.394 0.250 0.125 0.016 0.134 Part Number TPMT221FG =P =M =K =N =S =H TPMT PC CHIPBREAKER POSITIVE 11° CLEARANCE TRIANGULAR INSERTS FOR MEDIUM MACHINING 60° l D1 11° R d t ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) TPMT21.51PC TPMT110204PC .005 (.002-.007) .026 (.008-.098) 0.394 0.250 0.094 0.016 0.110 TPMT21.52PC TPMT110208PC .007 (.004-.011) .026 (.008-.098) 0.354 0.250 0.094 0.031 0.110 TPMT32.51PC TPMT16T304PC .006 (.003-.009) .031 (.010-.118) 0.610 0.375 0.156 0.016 0.073 TPMT32.52PC TPMT16T308PC .008 (.004-.012) .031 (.020-.118) 0.571 0.375 0.156 0.031 0.073 For use in holder S-STFPR/L, see page 1132. =P =M =K =N =S =H 984
